Woven vs Non Woven Geotextiles, Chosen by Risk, Not Habit
Most geotextile failures are not down to poor materials. They happen because the membrane was asked to do the wrong job. On site, that usually comes from choosing what is familiar or cheap rather than what the ground actually needs.
Installers who avoid callbacks think in terms of failure risk, not product names.
Start With What Can Go Wrong
Before selecting any membrane, an experienced installer looks at the ground and asks a few blunt questions.
-
Will this ground soften or move once it is trafficked?
-
Does water need to pass through this layer freely?
-
If this layer fails, what is the consequence, cosmetic or structural?
Those answers matter more than whether a membrane is labelled woven or non woven.
If the ground is weak and movement is the risk, a non woven membrane will not save it.
If drainage or filtration is the risk, a woven membrane will make it worse.
Where Problems Actually Appear on Site
Most issues show up months or years after handover, not during installation.
Common examples seen repeatedly:
-

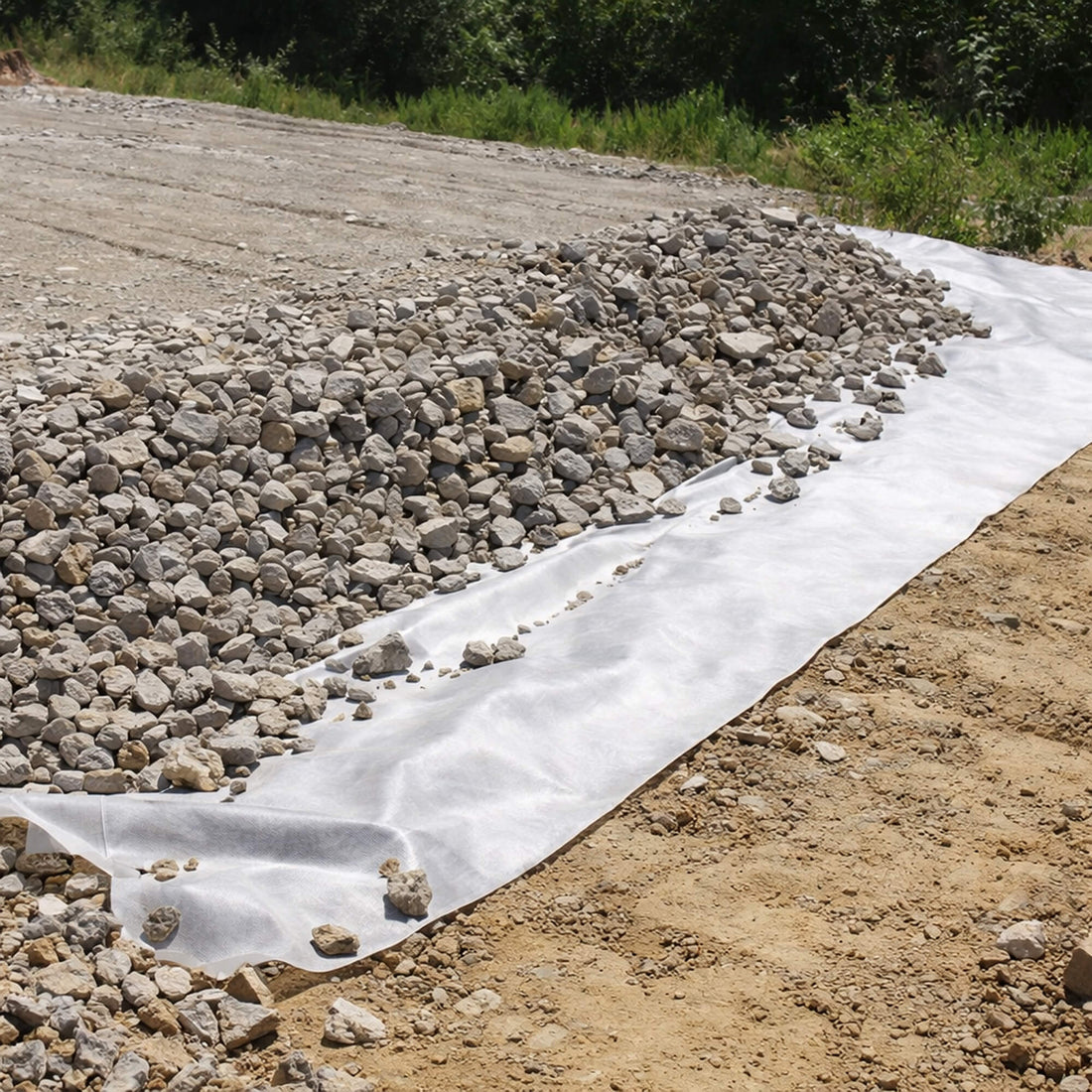

Driveways laid on non woven membranes
They look fine initially. Over time, vehicle loading pushes stone into soft soil. Rutting appears, followed by settlement. Drainage was never the issue, strength was. -
Drains wrapped in woven membranes
Water struggles to pass, fines build up and pipes clog. The drainage system fails despite being correctly laid. -
Membranes torn during installation
Usually caused by rushed ground prep or plant traffic on exposed fabric. Once torn, separation is compromised across the whole area. -
Insufficient overlaps or fixing
Fabric shifts during backfill, creating gaps. Stone and soil mix at joints and the failure spreads outward from those weak points.
In each case, the membrane did exactly what it was designed to do. It was simply the wrong one.
Understanding the Job of Each Layer
Every membrane layer has a single primary role.
-
Woven geotextiles control movement.
They stabilise weak subgrades, spread load and protect the sub-base from being consumed by the soil below. -
Non woven geotextiles control water and fines.
They allow drainage while preventing contamination of clean stone and drainage systems.
Problems start when one is expected to do the other’s job.
When Both Membranes Belong in the Same Build
Some of the most durable builds use both fabrics, each in the right place.
Typical examples include:
-
Horse arenas
Woven membrane under the sub-base to resist settlement, non woven around drains and below the riding surface to manage water and fines. -
Access roads with drainage runs
Woven membrane for stabilisation across the formation, non woven used locally around pipes and soakaways. -
Reinforced driveways on clay
Woven membrane for load control, non woven above or around features where filtration matters.
Using both is not overengineering. It is matching materials to function.
Installer Takeaway
Do not choose a membrane based on what you are building.
Choose it based on what you are preventing.
-
Preventing movement, rutting or long-term settlement points to woven.
-
Preventing blockage, contamination or drainage failure points to non woven.
Installers who think this way get fewer callbacks, fewer disputes and surfaces that still perform years after completion.
