If you're planning a new driveway, gravel path or patio, you've probably come across recommendations to install a geotextile membrane underneath. But is it actually necessary?
The short answer is: in most cases, yes.
A geotextile membrane provides a stable foundation, helps prevent weeds, improves drainage and significantly extends the lifespan of your project. However, there are situations where a membrane may not be required, so it's worth understanding what it does before deciding.
In this guide, we'll explain when you should use a geotextile membrane, when you might not need one, and how to choose the right type for your project.
What is a Geotextile Membrane?
A geotextile membrane is a durable, permeable fabric installed between the ground and your chosen surface material. Its primary purpose is to separate different layers while allowing water to drain naturally through the ground.
Depending on the application, you'll typically choose between:
- Woven geotextile membranes – designed for strength, stabilisation and load-bearing applications such as driveways, roads and car parks.
- Non-woven geotextile membranes – designed for filtration and drainage, making them ideal for French drains, soakaways, landscaping and other drainage systems.
Choosing the correct membrane depends on how the area will be used and the type of ground beneath it.
Do You Need a Membrane Under Gravel?
In almost every case, yes.
Whether you're creating a decorative gravel garden, footpath or gravel driveway, installing a weed membrane beneath the gravel offers several important benefits.
Prevents the Gravel Sinking
Without a membrane, gravel gradually works its way into the soil below. Over time this leads to uneven surfaces and requires regular topping up.
A geotextile membrane separates the gravel from the subgrade, helping maintain an even surface for years.
Reduces Weed Growth
While no membrane can completely stop weeds (many arrive via airborne seeds), it dramatically reduces weeds growing up from beneath the surface.
This means less maintenance and less need for chemical weed killers.
Improves Drainage
Unlike plastic sheeting, geotextile membranes are permeable, allowing rainwater to pass through while keeping soil and aggregate separated.
This helps prevent standing water while maintaining the stability of your gravel.
Increases the Lifespan of the Installation
By preventing contamination between soil and aggregate, the membrane helps preserve the structural integrity of the gravel layer and reduces ongoing maintenance.
Should You Use a Membrane Under a Gravel Driveway?
If you're installing a driveway, a woven geotextile membrane is highly recommended.
Driveways are exposed to repeated vehicle loads, which place significant pressure on the sub-base.
A woven membrane helps by:
- Separating the soil from the sub-base
- Preventing rutting and sinking
- Distributing vehicle loads more evenly
- Increasing the lifespan of the driveway
- Reducing future maintenance costs
This is particularly important on softer ground or clay soils where movement is more likely
Do You Need a Membrane Under a Patio?
The answer depends on the ground conditions.
For patios built on well-draining, stable ground with a properly compacted sub-base, a membrane isn't always essential.
However, installing one is often worthwhile if:
- The ground is soft or unstable.
- You're laying a patio over previously cultivated soil.
- You're concerned about weed growth.
- Drainage is poor.
- You want to reduce the risk of the sub-base mixing with the soil below.
Many professional landscapers install a membrane as inexpensive insurance against future movement and maintenance issues.
When Might You Not Need a Geotextile Membrane?
There are a few situations where a membrane may not be necessary.
These include:
- Patios built on naturally stable, free-draining ground.
- Existing sub-bases that remain intact and uncontaminated.
- Temporary landscaping projects.
- Areas where ground conditions are already ideal.
That said, considering the relatively low cost of a membrane compared with the total project cost, many installers still choose to include one for additional peace of mind.
Woven vs Non-Woven Geotextile Membranes
Choosing the right membrane is just as important as deciding whether to use one.
| Application | Recommended Membrane |
|---|---|
| Gravel driveways | Woven geotextile membrane |
| Roads & access tracks | Woven geotextile membrane |
| Patios | Usually woven (depending on ground conditions) |
| Decorative gravel | Woven or non-woven depending on purpose |
| Soakaways | Non-woven geotextile membrane |
| French drains | Non-woven geotextile membrane |
| Horse arenas | Woven geotextile membrane for stability |
As a general rule:
- Choose woven membranes when strength and ground stabilisation are priorities.
- Choose non-woven membranes when drainage and filtration are the primary objectives
What GSM Membrane Do You Need?
One of the most common questions is:
"What GSM geotextile membrane should I buy?"
GSM stands for grams per square metre, which indicates the weight and, generally, the robustness of the material.
Higher GSM membranes typically offer greater durability and strength, although selecting the right product also depends on the intended application and ground conditions.
For domestic landscaping:
- Lighter membranes are often suitable for decorative areas and weed control.
- Heavier woven membranes are recommended for driveways and areas carrying vehicle traffic.
If you're unsure which grade is suitable for your project, our team can help you choose the right product.

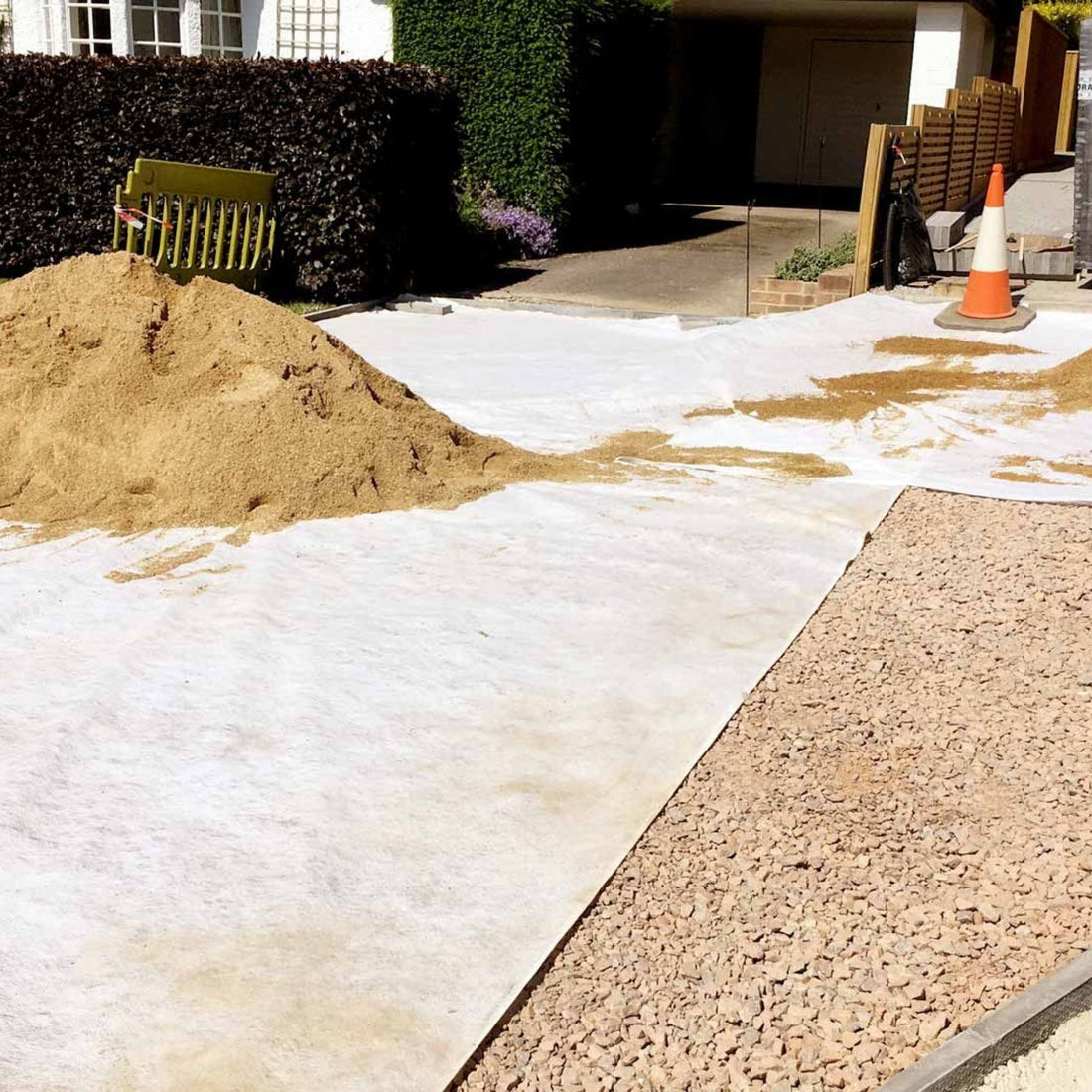

How to Install a Geotextile Membrane
Correct installation is essential for achieving the best performance.
A typical installation involves:
- Clear vegetation and level the ground.
- Remove sharp stones and debris.
- Roll out the membrane flat across the area.
- Overlap adjoining sheets by at least 300mm. On softer ground or heavily loaded areas, larger overlaps of around 600mm may be appropriate.
- Secure the membrane with fixing pegs if required.
- Install your sub-base, gravel or paving on top.
Avoid stretching the membrane tightly, as allowing it to sit naturally against the ground helps maintain its effectiveness.
How Long Does a Geotextile Membrane Last?
When correctly installed and protected beneath gravel or paving, a quality geotextile membrane can typically last 15 to 20 years or more.
Because the membrane is buried below the finished surface, it's protected from UV exposure and physical damage, helping maximise its lifespan.
Frequently Asked Questions
Will a geotextile membrane stop all weeds?
No. It significantly reduces weeds growing from beneath the surface, but airborne seeds can still germinate within the gravel itself.
Can water drain through a geotextile membrane?
Yes. Quality geotextile membranes are permeable, allowing water to drain naturally while preventing different material layers from mixing.
Is weed membrane the same as geotextile membrane?
Not always. Many weed membranes are designed solely to suppress weeds, whereas geotextile membranes are engineered to provide separation, stabilisation, filtration and drainage. For driveways and load-bearing applications, a genuine geotextile membrane is usually the better choice.
Which membrane is best for a driveway?
A woven geotextile membrane is generally the best choice because it provides excellent strength and stabilisation beneath vehicle traffic.
Frequently Asked Questions
Will a geotextile membrane stop all weeds?
No. It significantly reduces weeds growing from beneath the surface, but airborne seeds can still germinate within the gravel itself.
Can water drain through a geotextile membrane?
Yes. Quality geotextile membranes are permeable, allowing water to drain naturally while preventing different material layers from mixing.
Is weed membrane the same as geotextile membrane?
Not always. Many weed membranes are designed solely to suppress weeds, whereas geotextile membranes are engineered to provide separation, stabilisation, filtration and drainage. For driveways and load-bearing applications, a genuine geotextile membrane is usually the better choice.
Which membrane is best for a driveway?
A woven geotextile membrane is generally the best choice because it provides excellent strength and stabilisation beneath vehicle traffic.
Final Thoughts
If you're installing a gravel driveway, patio, path or other landscaped area, using a geotextile membrane is one of the simplest ways to improve long-term performance.
It helps reduce maintenance, improves stability, supports drainage and extends the lifespan of your installation - all for a relatively small additional cost.
The key is choosing the right product for the job. Woven membranes provide the strength needed for driveways and heavily loaded areas, while non-woven membranes excel where filtration and drainage are the priority.
If you're unsure which membrane is right for your project, our team is always happy to help.
