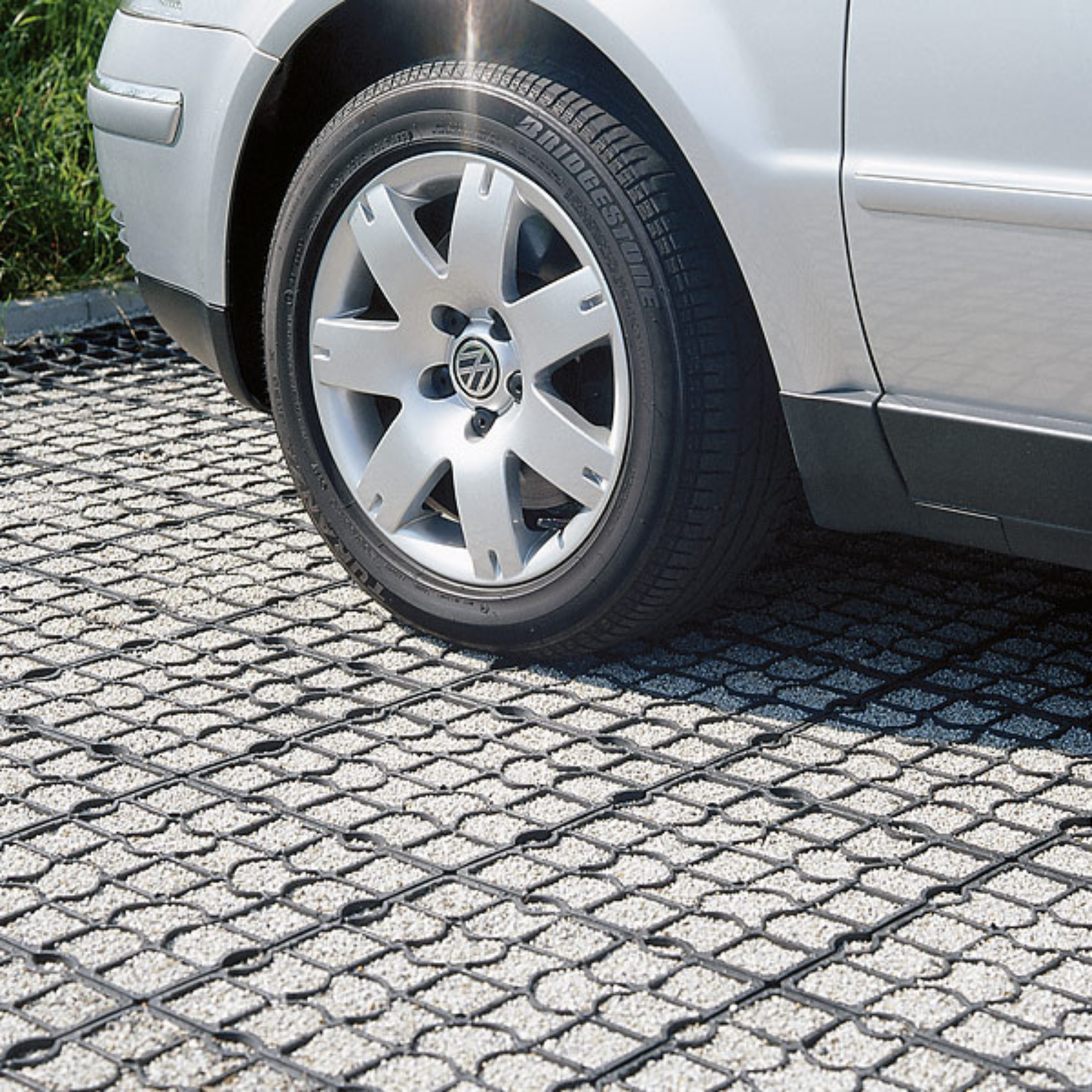

EcoGrid E50 Porous Paving Grid

EcoGrid E50 is the strongest ground reinforcement grid in the EcoGrid range. Manufactured from 100 percent recycled polyethylene, it is a 50mm deep permeable grid designed for areas subject to high loads, heavy vehicles and repeated trafficking.

When installed and filled, EcoGrid E50 distributes extreme loads across the surface, reducing rutting, deformation and long term settlement. Its deep cell structure and thick walls provide exceptional stability, even in demanding environments such as logistics yards, loading bays and emergency access routes. The open cell design allows water to drain vertically into the ground, supporting SuDS compliant construction and reducing surface water runoff.

EcoGrid E50 is commonly used for commercial car parks, lorry parks, airports, rail and tramway access routes, construction site roads, storage yards and heavily used equestrian or agricultural areas. It is also suitable for grass or gravel reinforcement where strength and durability are critical.

Installation is straightforward despite the grid’s strength. Panels interlock securely to form a continuous surface and can be laid quickly over a well prepared sub base. A suitable non woven geotextile membrane should always be installed beneath the grid to separate the sub grade, prevent contamination and maintain long term performance.

EcoGrid E50 is designed for heavy duty use including HGVs, plant equipment and emergency vehicles. It is not necessary for domestic driveways or light traffic areas where E40 would be more appropriate.

• Heavy duty grid for extreme load and commercial traffic
• 50mm depth for maximum load distribution and stability
• Fully permeable surface supporting SuDS compliance
• Suitable for HGVs, plant and emergency access routes
• Interlocking system forms a strong continuous surface
• Manufactured from recycled polyethylene for long service life

EcoGrid E50 is manufactured from 100 percent recycled polyethylene. The material is UV stable, chemically resistant and environmentally neutral, making it suitable for long term use in sensitive environments including agricultural land and areas near water.

Grid size: 330 x 330 x 50mm
Wall height: 50mm
Wall thickness: 5mm
Units per m²: 9 grids
Weight per m²: 9.55kg
Weight per grid: 1.06kg
Material: recycled polyethylene
Load capacity: up to 1000 tonnes per m² filled
Axle load resistance: up to 40 tonnes (DIN 1072)
Temperature stability: -50°C to +90°C
Moisture absorption: 0.01%
Chemical resistance: acids, alkalis, oils, fuels and de-icing salts
Packaging unit: 12 grids per layer (1.33m²)
Full pallet coverage: 54.67m² (UK pallet)
