TCS TechCell Cellular Confinement Panels

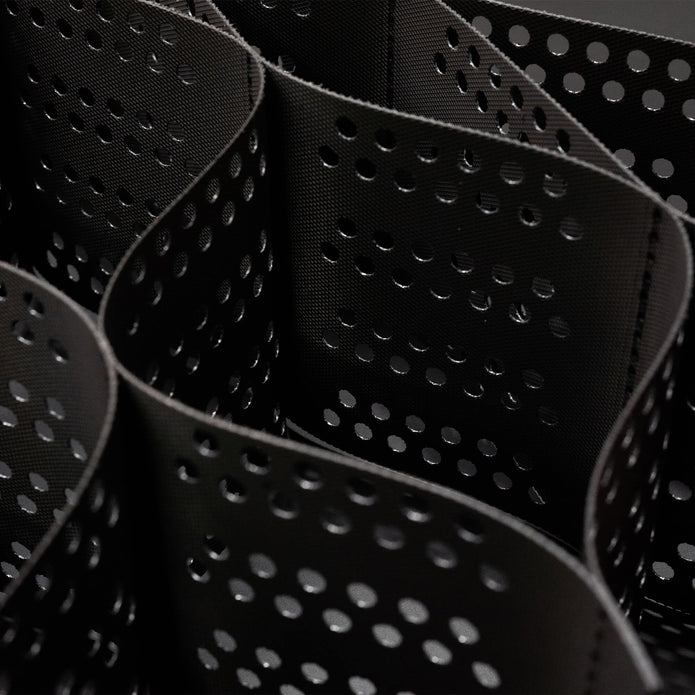

TCS TechCell is a cellular confinement system manufactured from textured and perforated virgin HDPE strips welded into a three dimensional geocell structure. When expanded and infilled with suitable aggregate or soil, the system forms a stabilised mattress that significantly improves load distribution and ground performance.

The primary function of TechCell is confinement. By locking infill material within the cell walls, it prevents lateral movement of aggregate, increases stiffness and reduces differential settlement. This makes it suitable for use over weak or variable sub grades where unbound stone alone would deform under load.

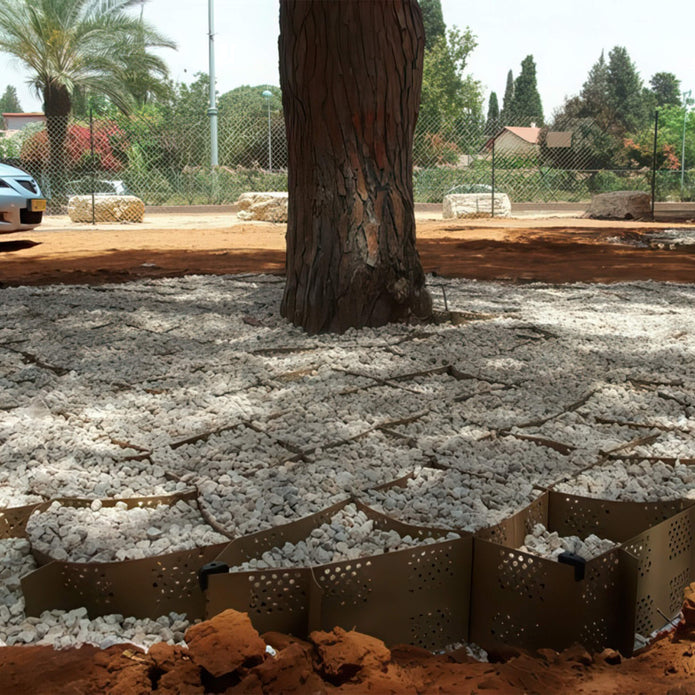

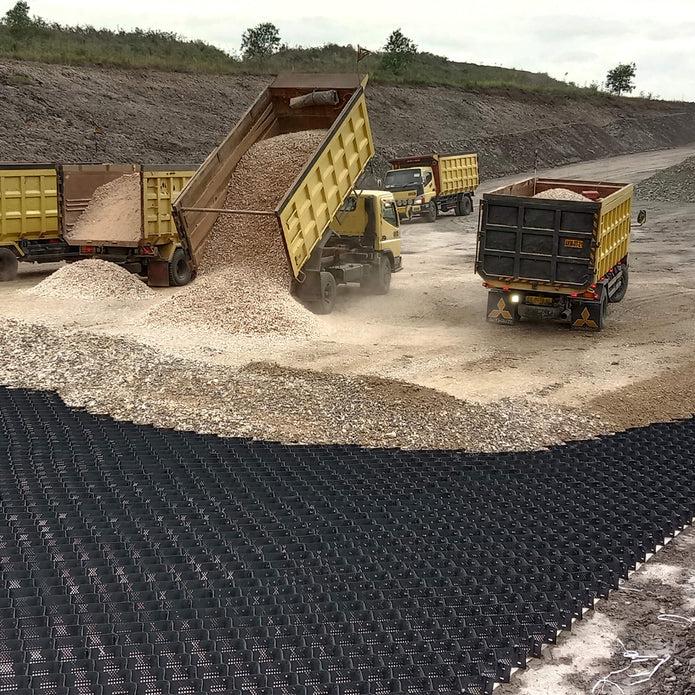

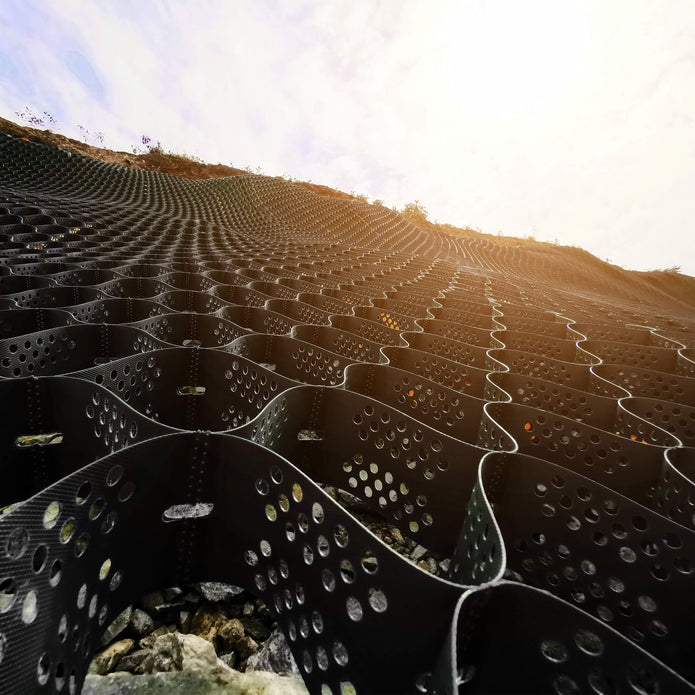

TechCell is commonly used beneath highways, access roads, car parks, plant routes and construction platforms. It is also widely specified for slope stabilisation, basal reinforcement, tree root protection and earth retention where erosion or ground movement is a concern. The perforated cell walls allow water movement through the structure, supporting permeable build ups and reducing pore pressure.

Panels are supplied folded flat and expanded on site to a nominal size of 2.59 m x 6.5 m, covering approximately 16.8 m² per panel. Depth options of 75 mm, 100 mm, 150 mm and 200 mm allow the system to be matched to loading conditions and required stabilised layer thickness.

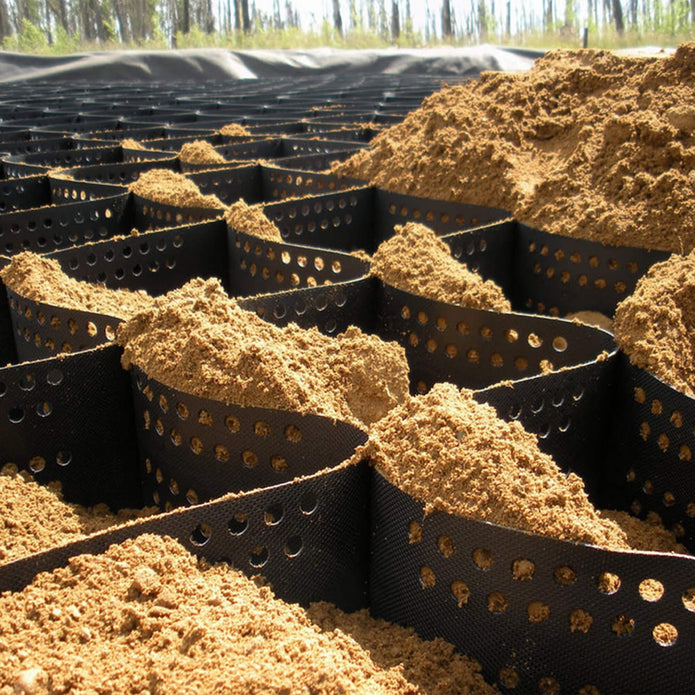

TechCell should be installed over a suitable non woven geotextile membrane to provide separation from the sub grade and prevent loss of fines into the infill. On slopes or weak ground, panels must be adequately pinned to maintain alignment during infill. Aggregate selection and compaction are critical to performance.

Limitations should be noted. TechCell is not a surface finish and must always be fully infilled. It is not intended as a replacement for structural pavement design where extreme loads are present without engineering input.

• Cellular confinement improves bearing capacity on weak ground
• Reduces aggregate movement and long term settlement
• Suitable for trafficked areas, slopes and basal reinforcement
• Perforated HDPE cells allow drainage through the structure
• Multiple depths to suit loading and build up requirements
• Large panel size for efficient coverage on site

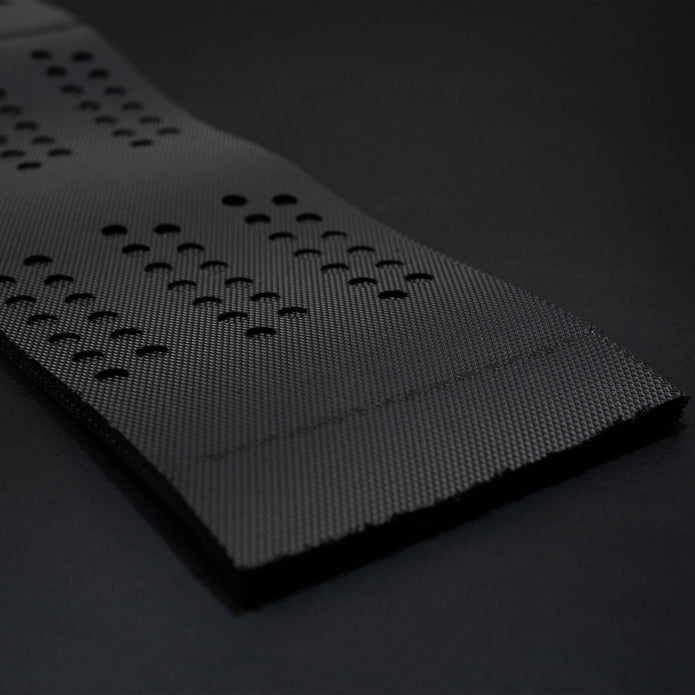

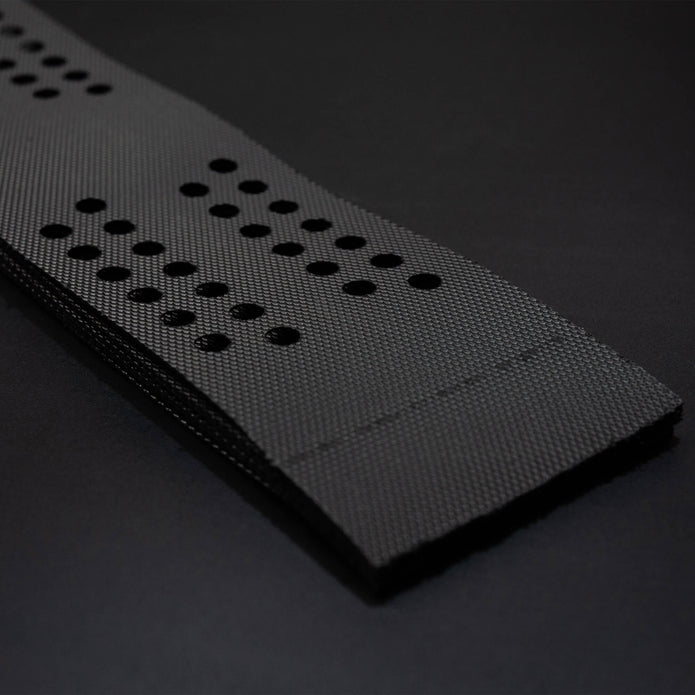

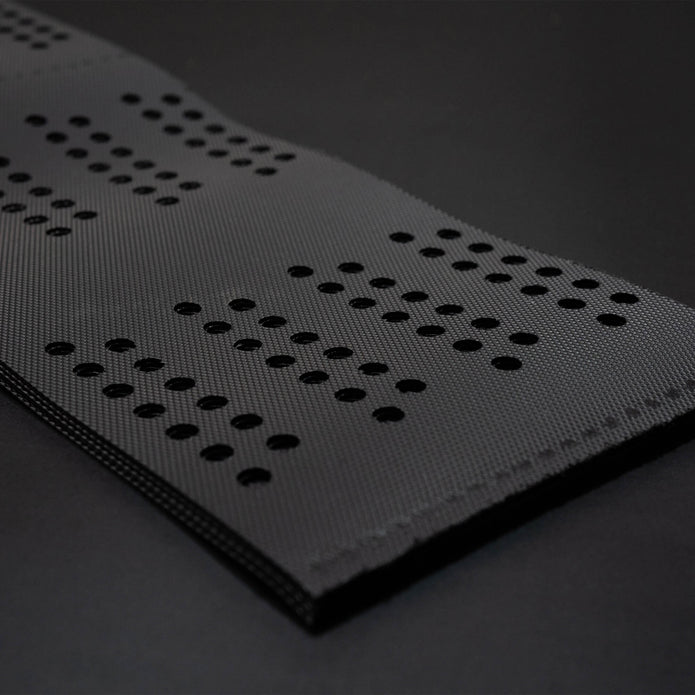

TechCell panels are manufactured from virgin high density polyethylene with textured and perforated strips. The material provides high chemical resistance, durability in buried conditions and strong weld performance between cells.

Product type: Cellular confinement geocell system
Material: Virgin HDPE
Panel size (expanded): 2.59 m x 6.50 m
Panel coverage: approx. 16.82 m²
Cell depths available: 75 mm, 100 mm, 150 mm, 200 mm
Expanded cell dimensions: 259 mm x 224 mm
Weld spacing: 356 mm
Nominal sheet thickness (post texturing): 1.52 mm
Seam peel strength:
- 75 mm: 1065 N
- 100 mm: 1420 N
- 150 mm: 2130 N
- 200 mm: 2840 N
Perforation area: less than 12 percent of cell surface
Colour: Black
