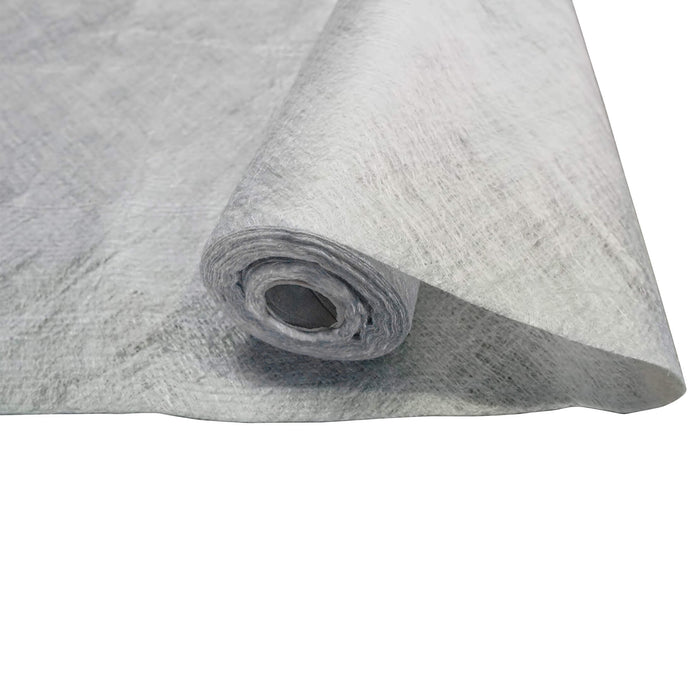

Terram T2000 Non-Woven Geotextile Membrane

Terram T2000 is a heavy duty non woven geotextile membrane manufactured from UV stabilised, high tenacity, virgin polypropylene fibres. As part of the Terram standard range, it is engineered to meet defined mechanical and hydraulic performance properties rather than being specified purely by weight.

The membrane is both mechanically needle punched and thermally bonded, creating a tough, abrasion resistant fabric with high resistance to damage during construction. The randomly orientated fibre structure provides fully isotropic strength, ensuring consistent performance in all directions and reducing the risk of tearing under load or during installation.

In the ground, Terram T2000 provides reliable separation between soil and aggregate while maintaining controlled permeability. This prevents fine soils migrating into the sub base, helping to preserve bearing capacity and drainage performance over time. The low pore size supports effective filtration without restricting water movement.

Terram T2000 is typically specified beneath driveways, access roads, car parks and heavily trafficked hardstanding where lighter grades may be compromised. It is also used in drainage applications such as French drains and granular drainage blankets, particularly on weak or clay sub grades where long term performance is critical.

This grade is well suited to projects where construction traffic, angular aggregates or repeated loading increase the risk of membrane damage. Where extreme loading or protection of critical infrastructure is required, higher Terram grades should be considered.

Install Terram T2000 on a prepared sub grade free from sharp protrusions. Adjacent rolls should be overlapped by at least 300mm, increasing on soft or uneven ground. The membrane should be covered promptly with aggregate to reduce UV exposure and installation damage.

• Heavy duty, performance specified non woven geotextile
• High puncture resistance for demanding ground conditions
• Fully isotropic strength for consistent load distribution
• Controlled permeability and low pore size for filtration
• Resists installation damage from traffic and angular aggregate
• Suitable for driveways, access roads and hardstanding

Manufactured from UV stabilised, high tenacity virgin polypropylene fibres. The membrane is mechanically needle punched and thermally bonded to deliver high strength, flexibility and abrasion resistance.

Product grade: Terram T2000
Fabric type: Non woven, needle punched and thermally bonded
Polymer: Polypropylene
Colour: White
Tensile strength: 14.5 kN per metre
Tensile elongation: 60 percent
CBR puncture resistance: 2750 N
Cone drop: 26 mm
Water permeability: 55 litres per m² per second
Mean pore size: 65 microns
Thickness at 2kPa: 1.7 mm
Roll width: 4.5 m
Roll length: 100 m
Roll coverage: 450 m²
