TS1000 Orange Non-Woven Geotextile Membrane

TS1000 Orange is a non woven geotextile membrane manufactured from UV stabilised polypropylene using a mechanically bonded continuous filament process. Unlike standard white geotextiles, this product is designed to act as both a functional separation layer and a highly visible warning membrane within the ground.

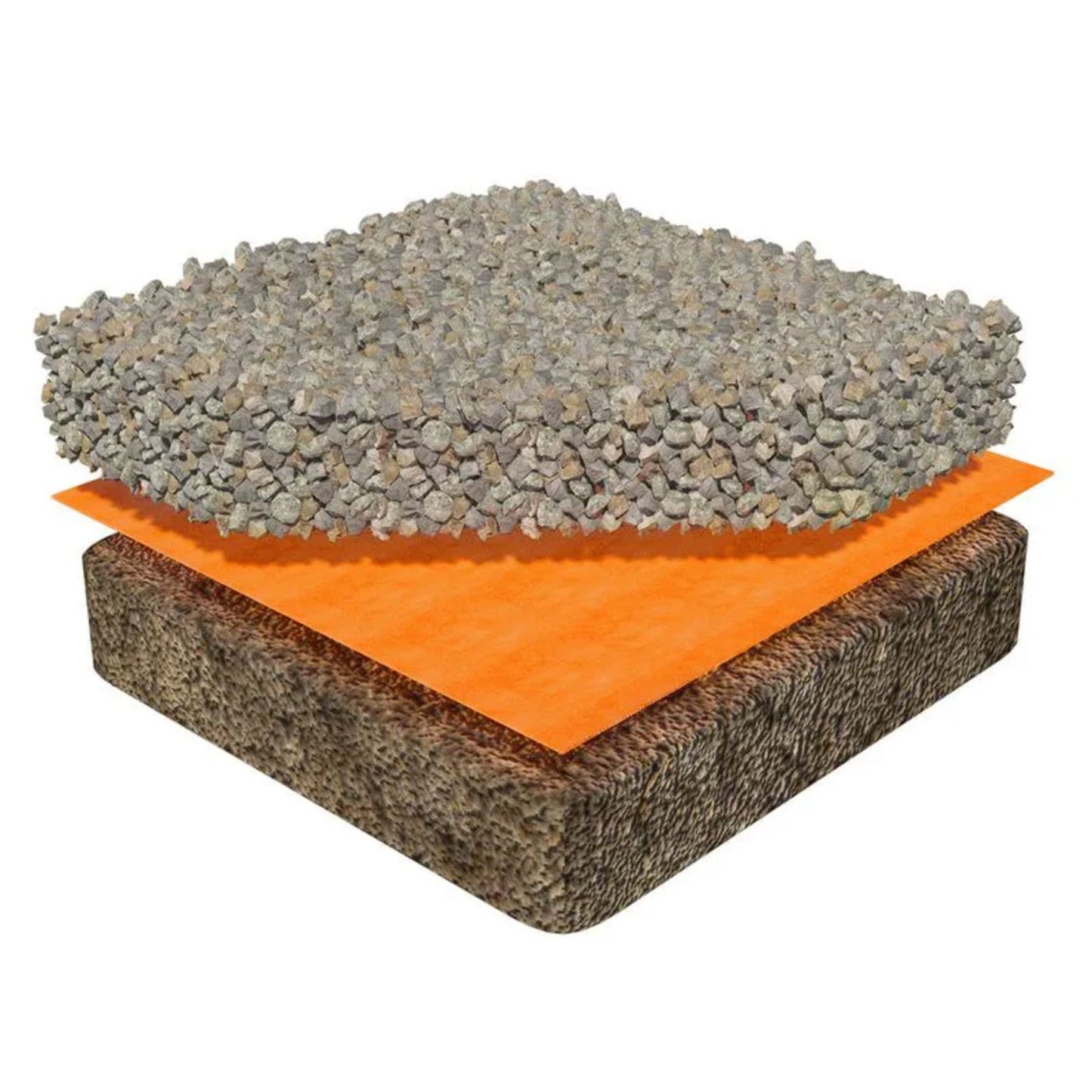

In service, TS1000 Orange provides effective separation between soil and aggregate while maintaining high permeability. This prevents the intermixing of materials and supports drainage performance, while the bright orange colour clearly signals the presence of a controlled or contaminated layer during future excavation works.

This membrane is commonly specified on contaminated land projects, brownfield developments and sites where a visual marker is required as part of the ground build up. It is also used as a warning layer above capped soils, around excavation zones and within infrastructure projects where accidental re-entry into contaminated material must be avoided.

The continuous filament construction provides high elongation and good resistance to installation damage, allowing the membrane to flex under stress without tearing. Its puncture resistance and hydraulic performance make it suitable for use beneath granular fills and around drainage systems where both filtration and visibility are required.

TS1000 Orange is not intended to replace heavier protection fleeces or barrier membranes. Its primary role is separation, filtration and visual identification within the ground.

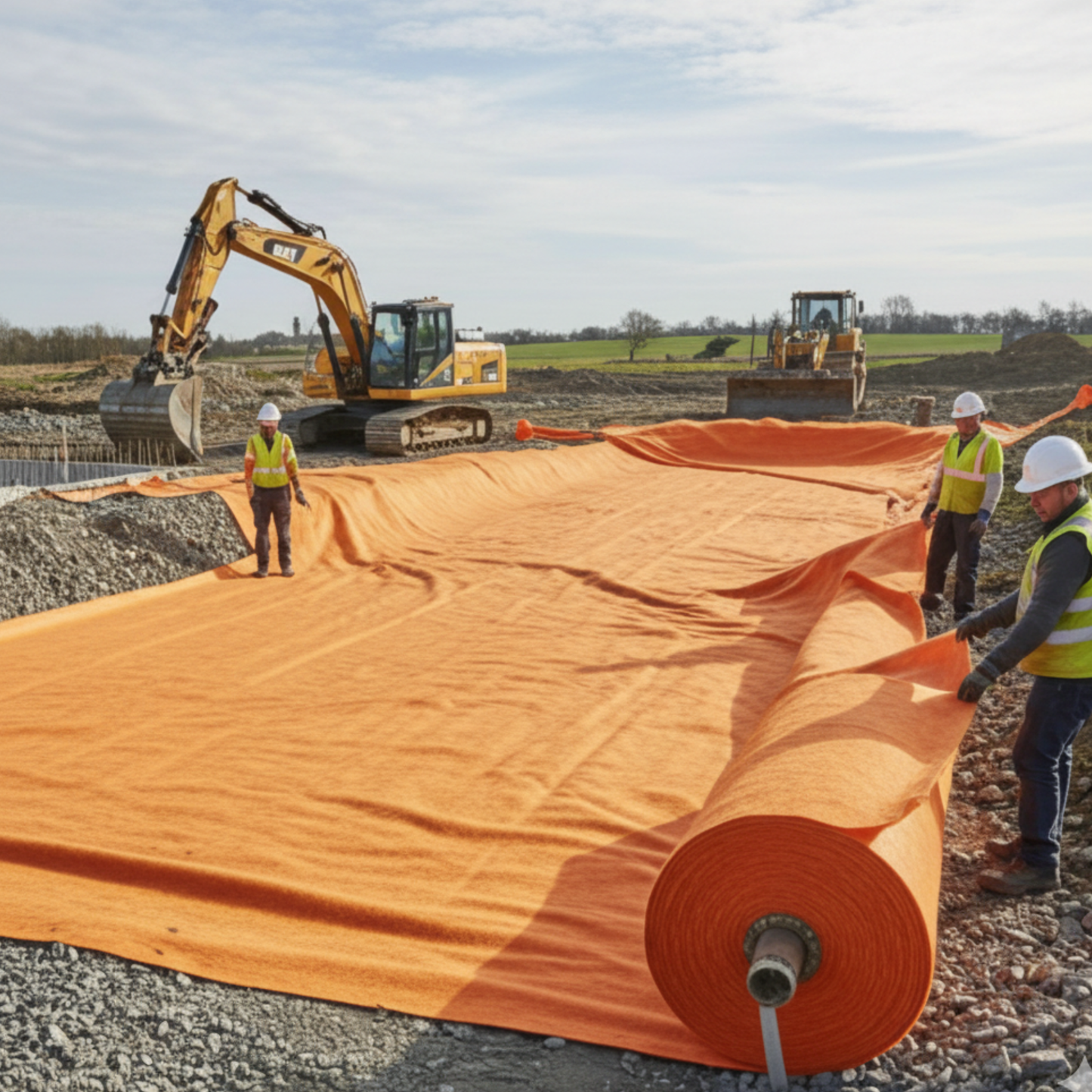

Install TS1000 Orange on a prepared sub grade free from sharp protrusions. Overlap adjacent sheets by a minimum of 300mm, increasing on soft or uneven ground. The membrane should be covered promptly to prevent UV exposure and installation damage.

• High visibility orange geotextile for warning and identification
• Provides separation and filtration in one layer
• Continuous filament construction for flexibility and durability
• Allows water flow while retaining fine soils
• Resistant to installation damage during groundworks
• Suitable for contaminated land and controlled excavation zones

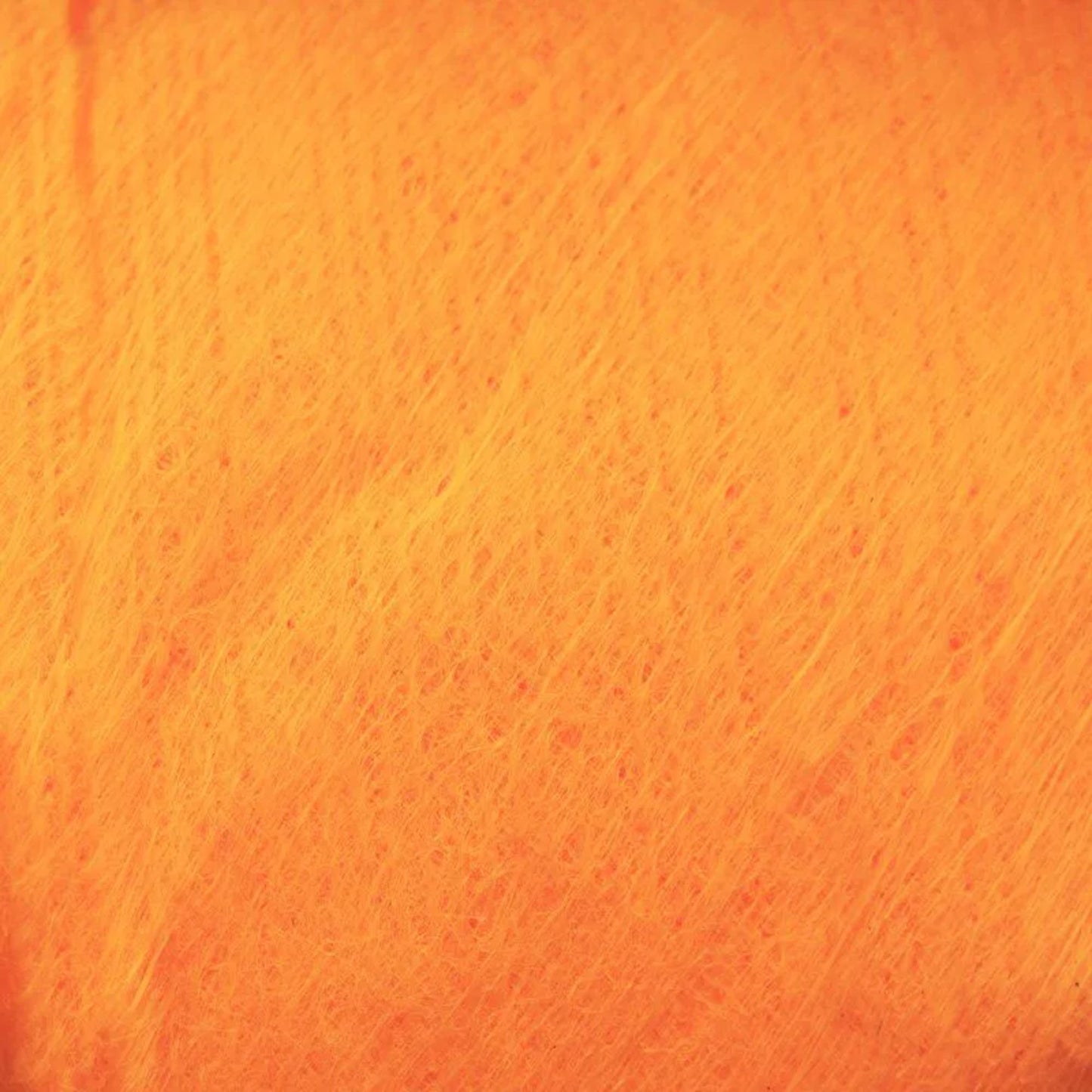

Manufactured from UV stabilised polypropylene using a mechanically bonded continuous filament non woven process. This construction provides high elongation, durability and consistent hydraulic performance.

Product grade: TS1000 Orange
Fabric type: Non woven, continuous filament, mechanically bonded
Polymer: Polypropylene
Colour: Orange
Tensile strength MD / XD: 8 / 8 kN per metre
Tensile elongation MD / XD: 90 / 75 percent
CBR puncture resistance: 1500 N
Dynamic cone drop: 26 mm
Opening size O90: 0.12 mm
Water permeability VIH50: 130 litres per m² per second
Thickness at 2kPa: 0.8 mm
Mass per unit area: 105 gsm

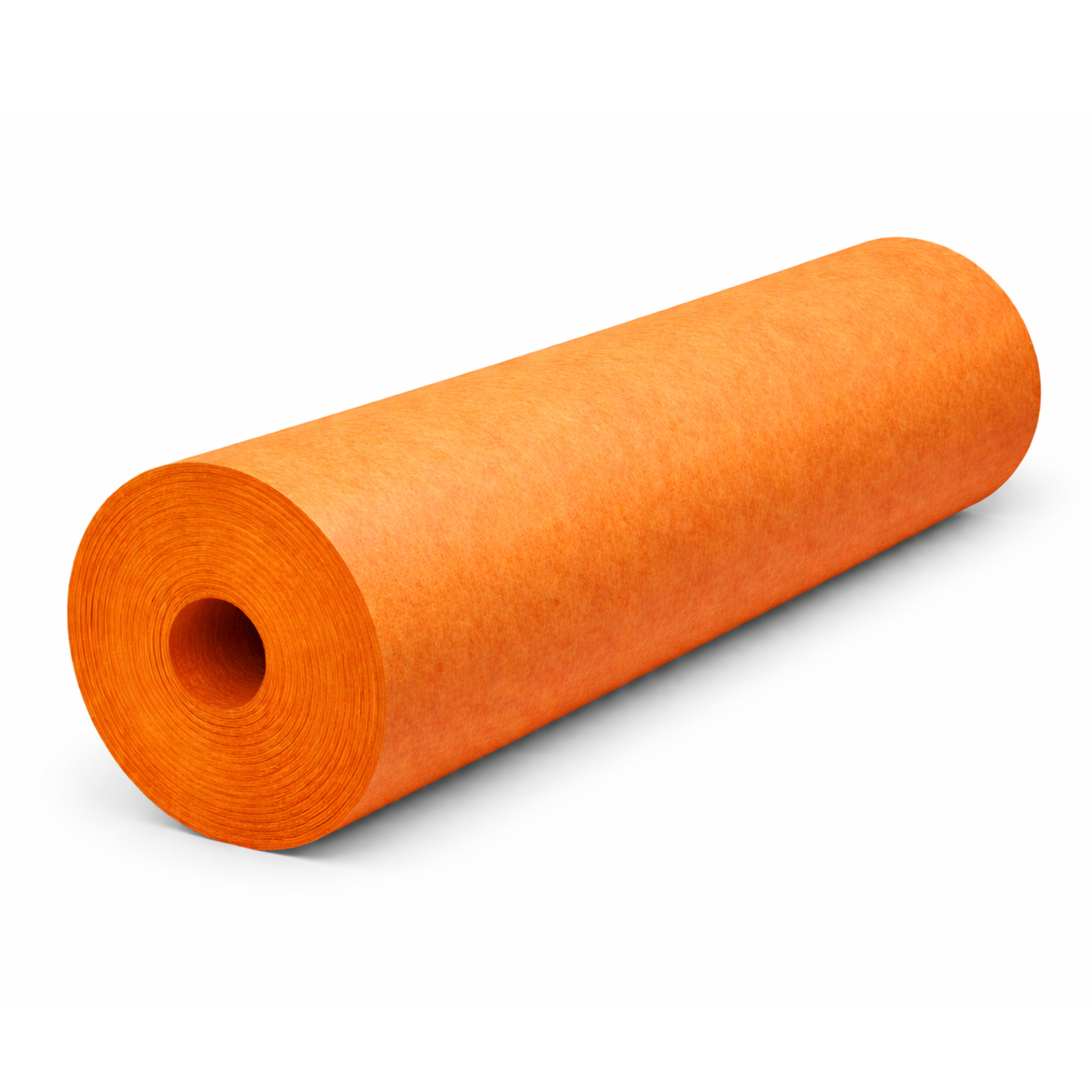

Roll width: 4.5 m
Roll length: 100 m
Roll coverage: 450 m²
