EcoGrid Bloxx With Concrete Inserts

EcoGrid Bloxx Ground Reinforcement System With Concrete Inserts

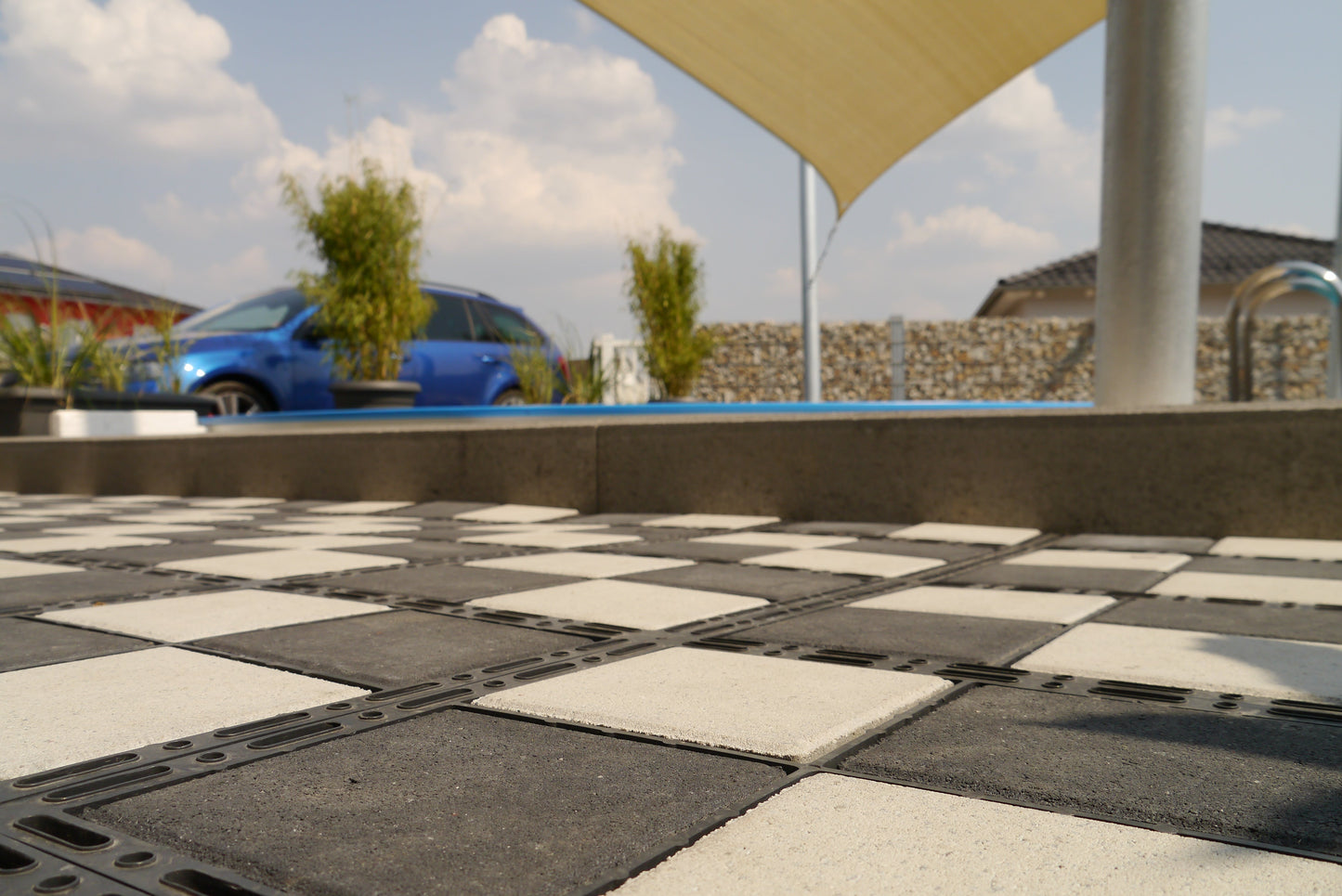

EcoGrid Bloxx Paving systems are a new way of creating pathways, driveways or even patios in a simple jig-saw like style. Created using EcoGrid Bloxx Frames and concrete inserts, you will be able to achieve a permanently permeable surface in a fraction of the time it would take using traditional materials and methods. When using EcoGrid Bloxx, you will create a permeable surface that will easily absorb any surface water into the ground below meeting legal requirements and eliminating any headache or worry in rainy seasons.

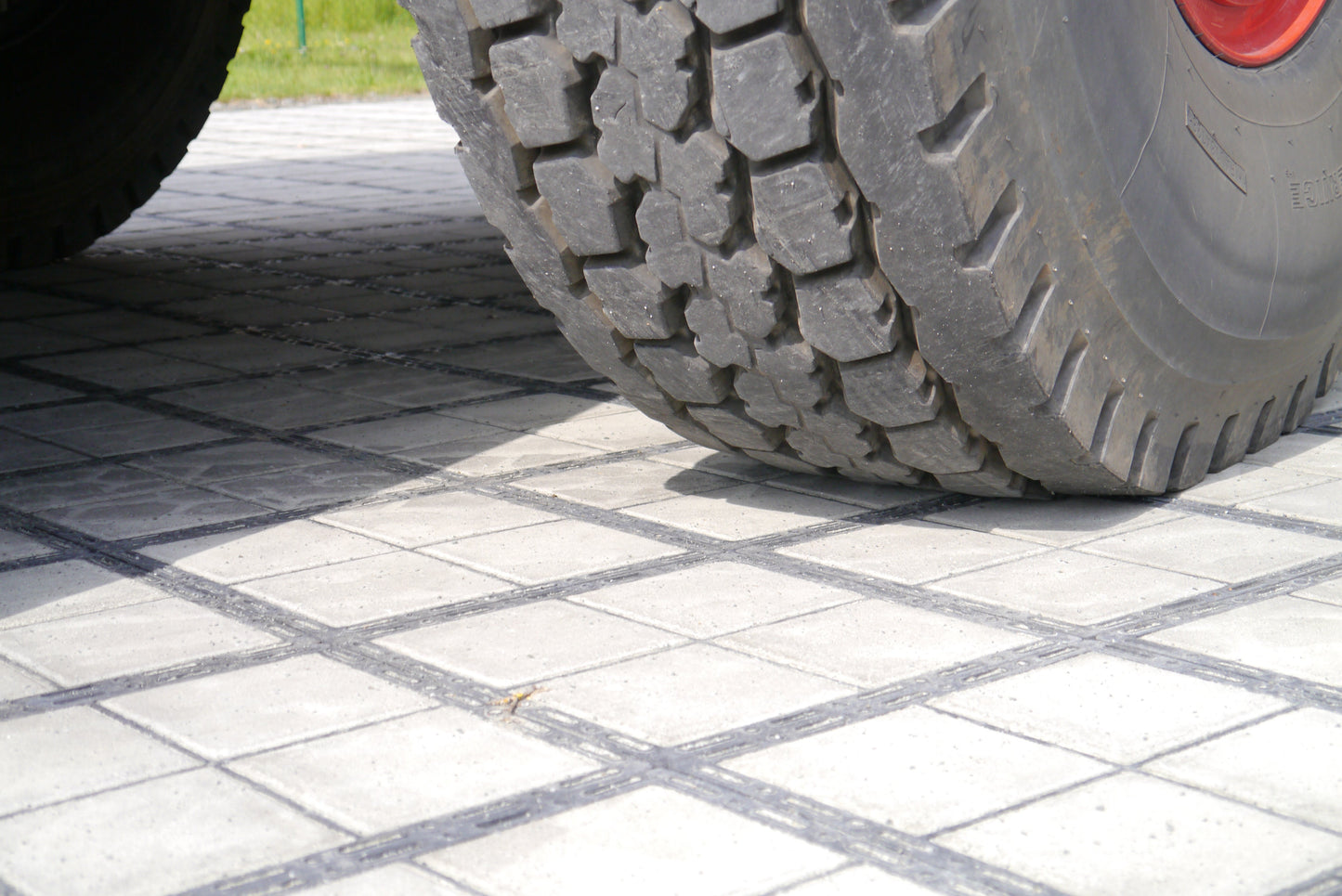

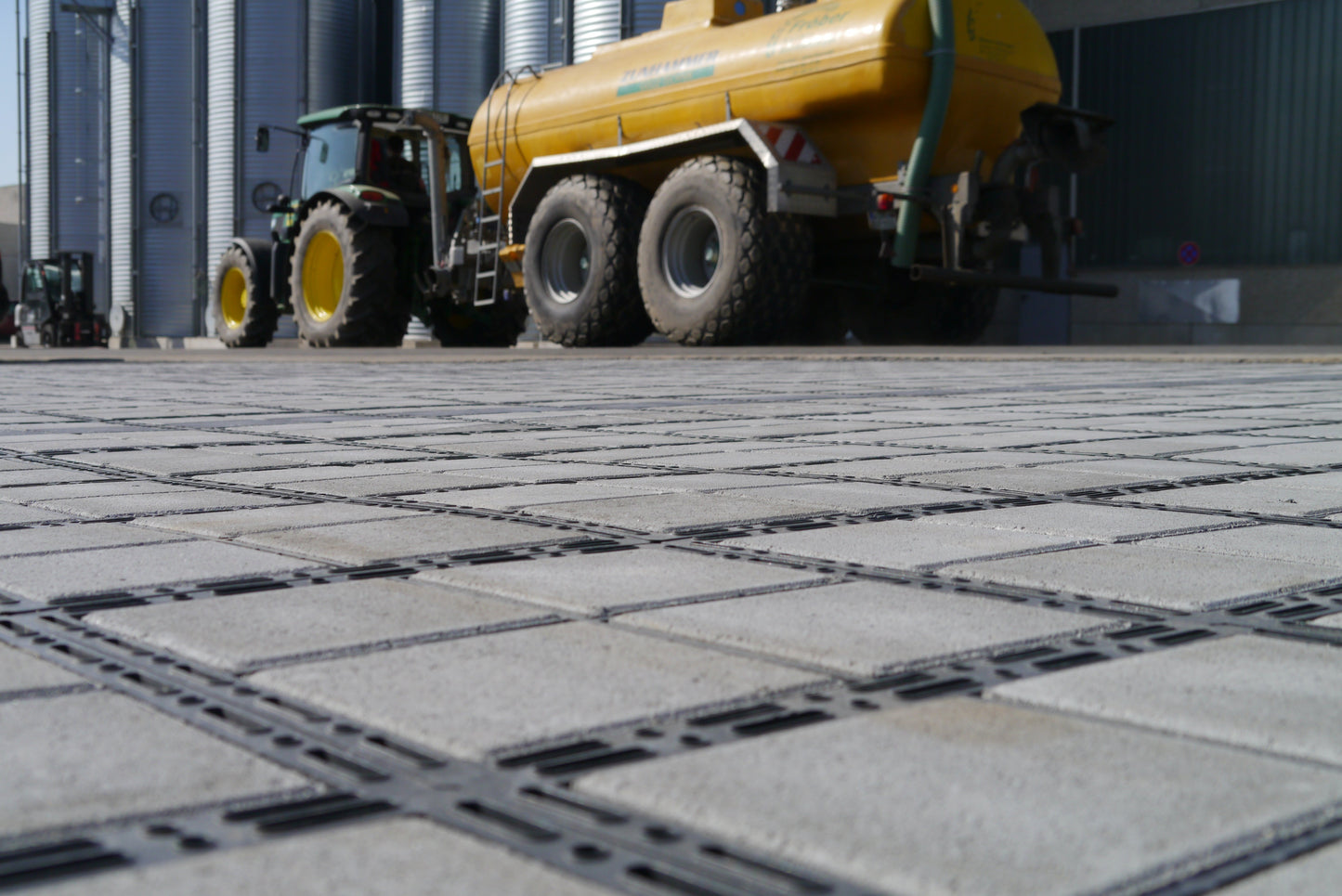

When filled with four concrete inserts, the Bloxx frame has a carrying load of 800T/sqm and pressure resistance of 10T, making them extremely durable and supportive of high loads just like traditional concrete.

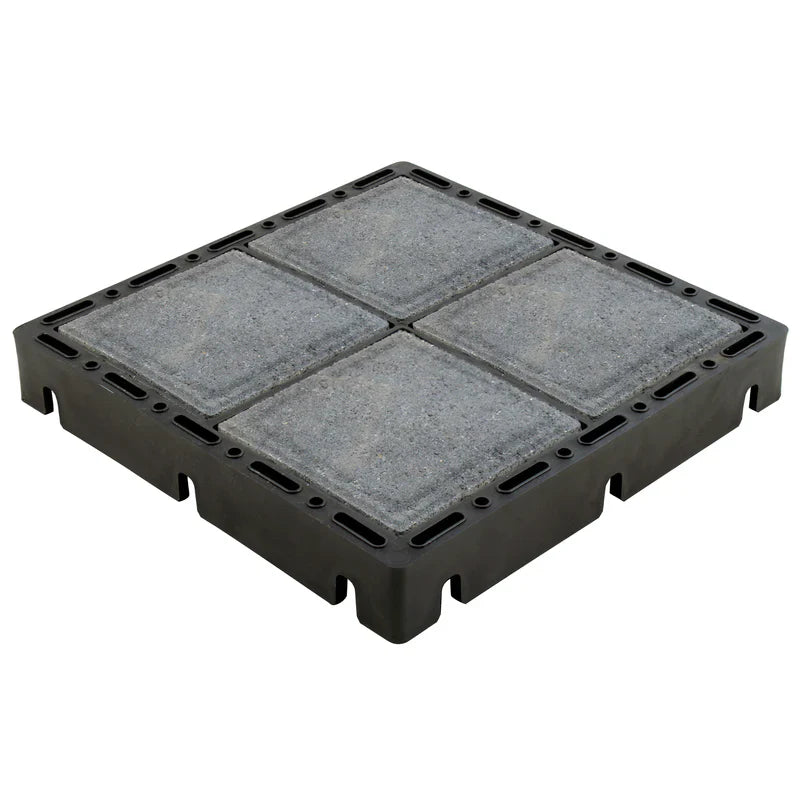

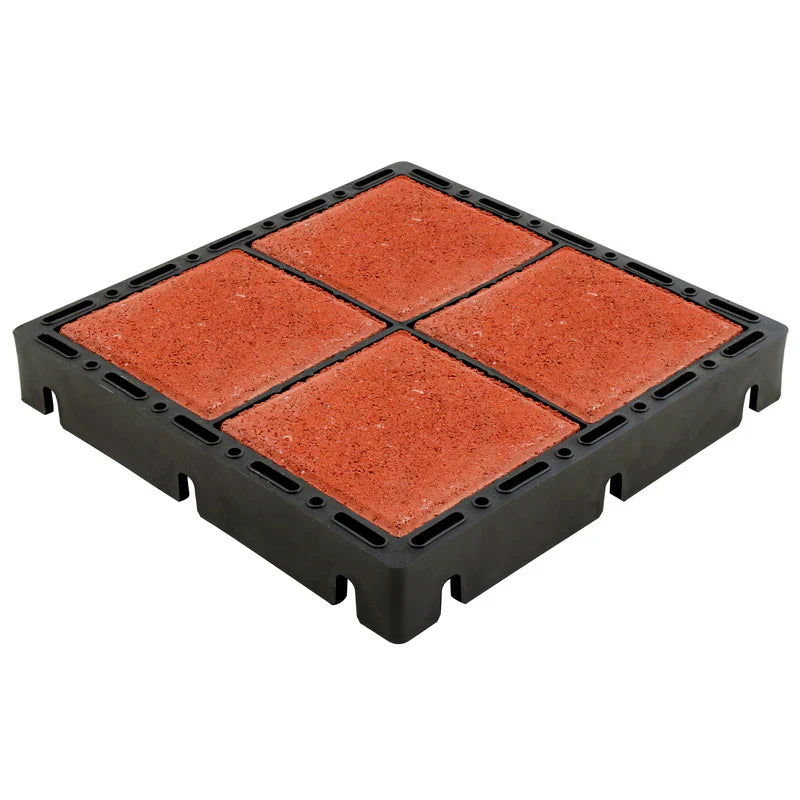

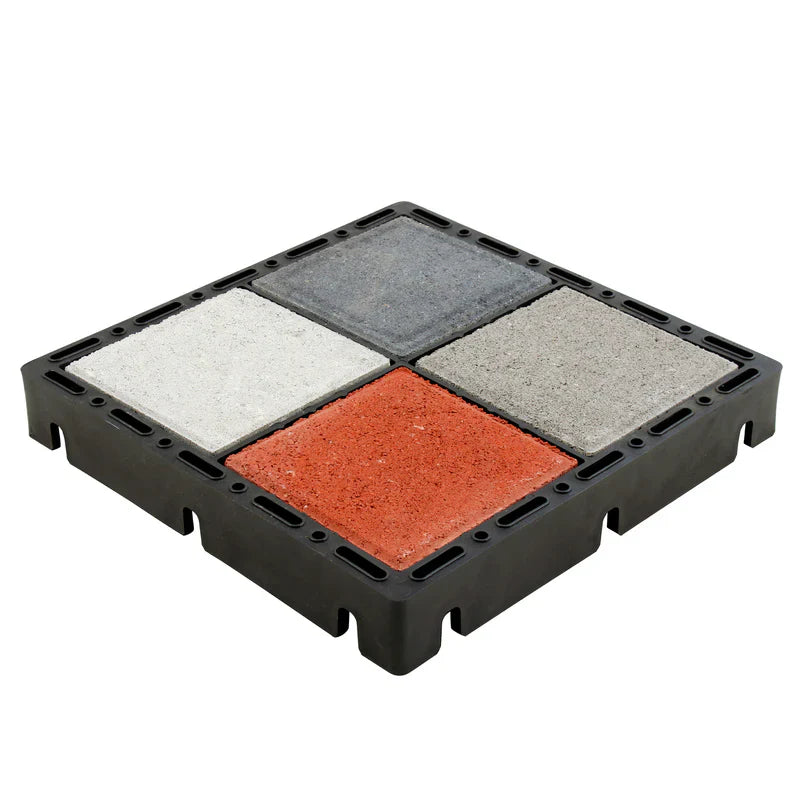

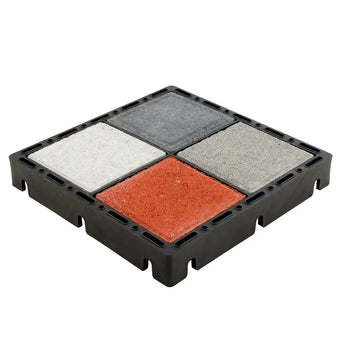

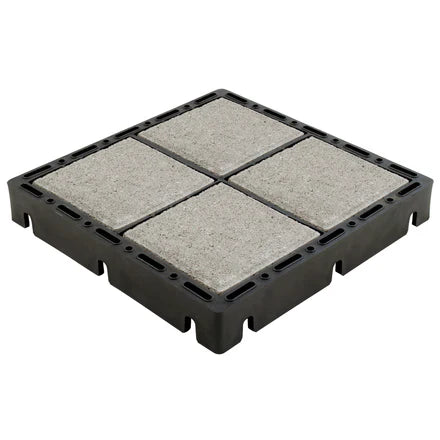

Each Bloxx insert weighs 2.12kg allowing them to be placed into the frames with no special training or tools by any lone worker. Concrete inserts are shipped on pallets of 432 weighing 940kg, allowing one pallet to cover 12m². Concrete inserts are available in Light grey (standard), Red, White & Anthracite. If you require or prefer a different finish, we also offer Bloxx Inserts in a Rubber finish.

20 Year Guarantee - EcoGrid Bloxx is designed for fast installation, allowing large areas to be laid quickly and efficiently with minimal labour.

Permeability - The Bloxx system remains fully permeable, enabling surface water to drain naturally and helping reduce pooling and flooding.

Fast Installation - EcoGrid Bloxx is backed by a 20 year manufacturer guarantee, providing long term confidence in performance and durability.

Interlocking - EcoGrid Bloxx uses a patented interlocking system that locks each unit firmly together, creating a stable and durable surface that stays in place under load.

Twin Wall Design - The unique twin wall construction prevents debris from compacting within the joints, allowing dirt to be washed away naturally and keeping the system permanently permeable.

EcoGrid Bloxx is manufactured from 100 percent recycled polyethene and is fully recyclable at the end of its life, making it a genuinely sustainable surfacing solution.

The system is environmentally neutral, OECD tested and designed to remain permeable long term, helping to support natural drainage, reduce surface water runoff and lower the environmental impact of hard surfacing in both urban and sensitive locations.

Tech Specs:

• Depth - 50mm
• Width - 330mm
• Length - 330mm
• Wall Thickness - 18mm
• Material - Recycled Polyethylene / Concrete
