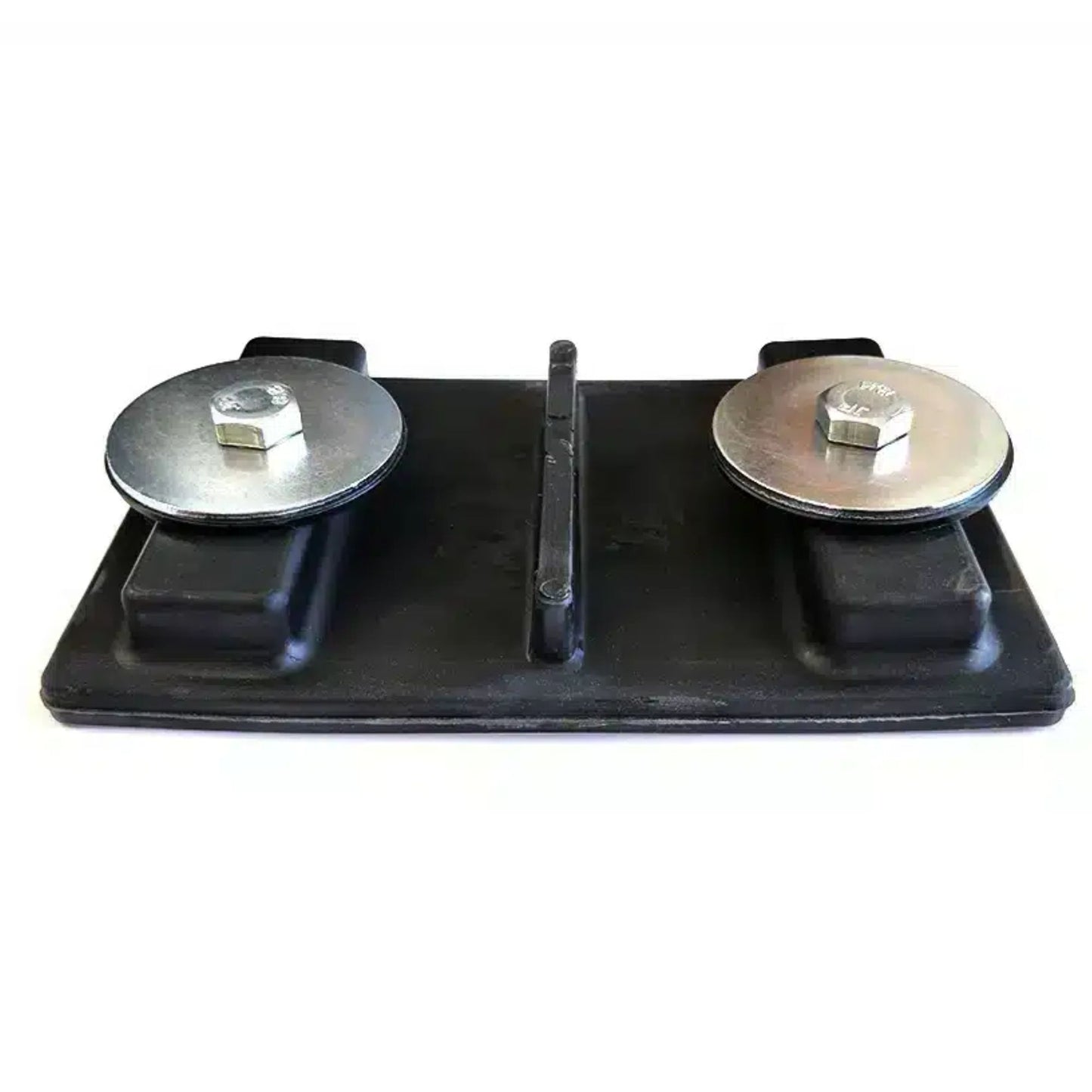

Elite EuroTrak HD 2 Way Connector

The Elite EuroTrak HD 2 Way Connector is a purpose-designed fixing used exclusively with EuroTrak Heavy Duty Access Mats. It provides a secure mechanical connection between adjacent mats, helping to prevent movement, lifting and separation during use.

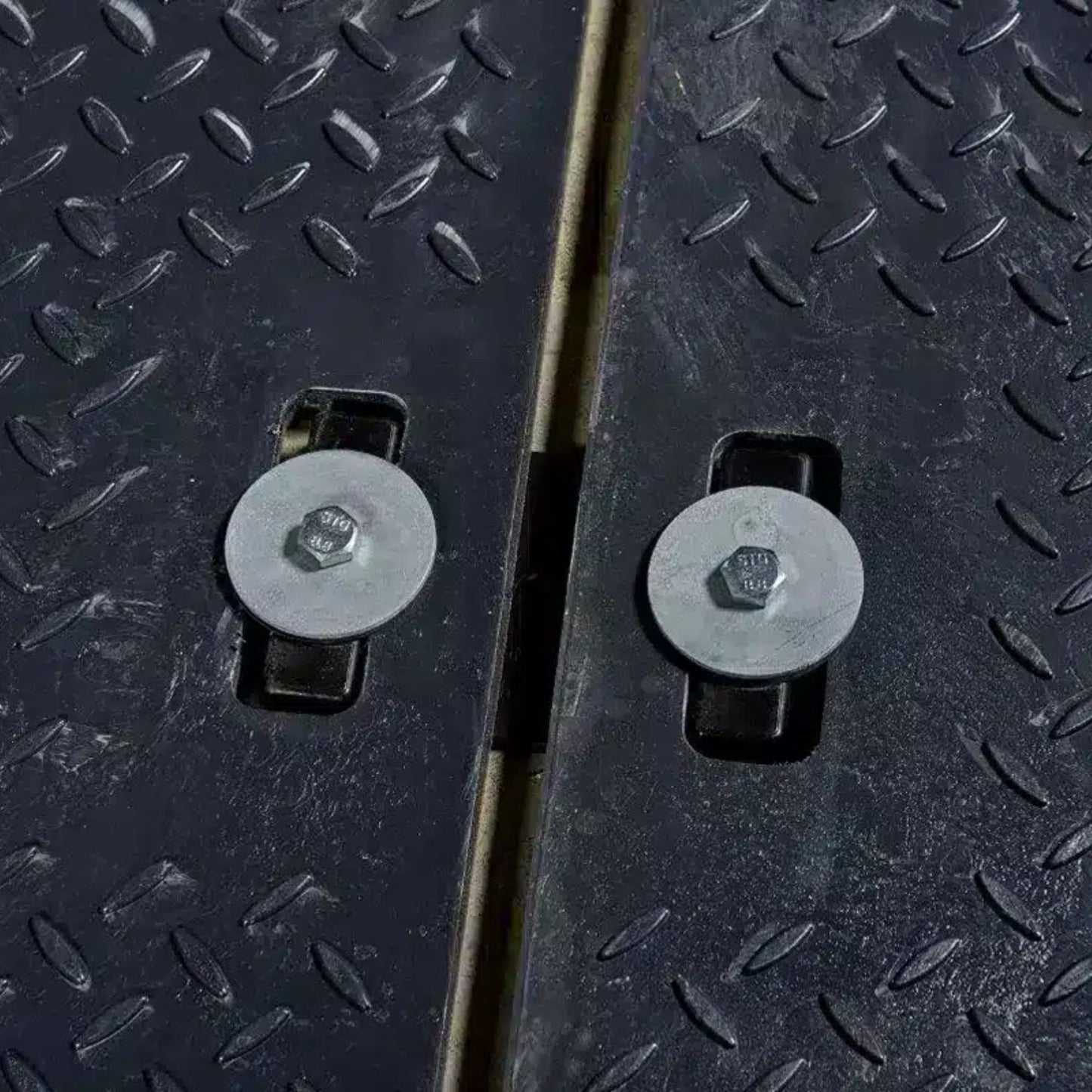

The connector is installed beneath the corner holes of each mat and secured from the top using bolts and washers. This creates a strong joint while allowing a controlled amount of flex, which helps reduce stress on mat edges when subjected to movement from heavy plant, vehicles and machinery.

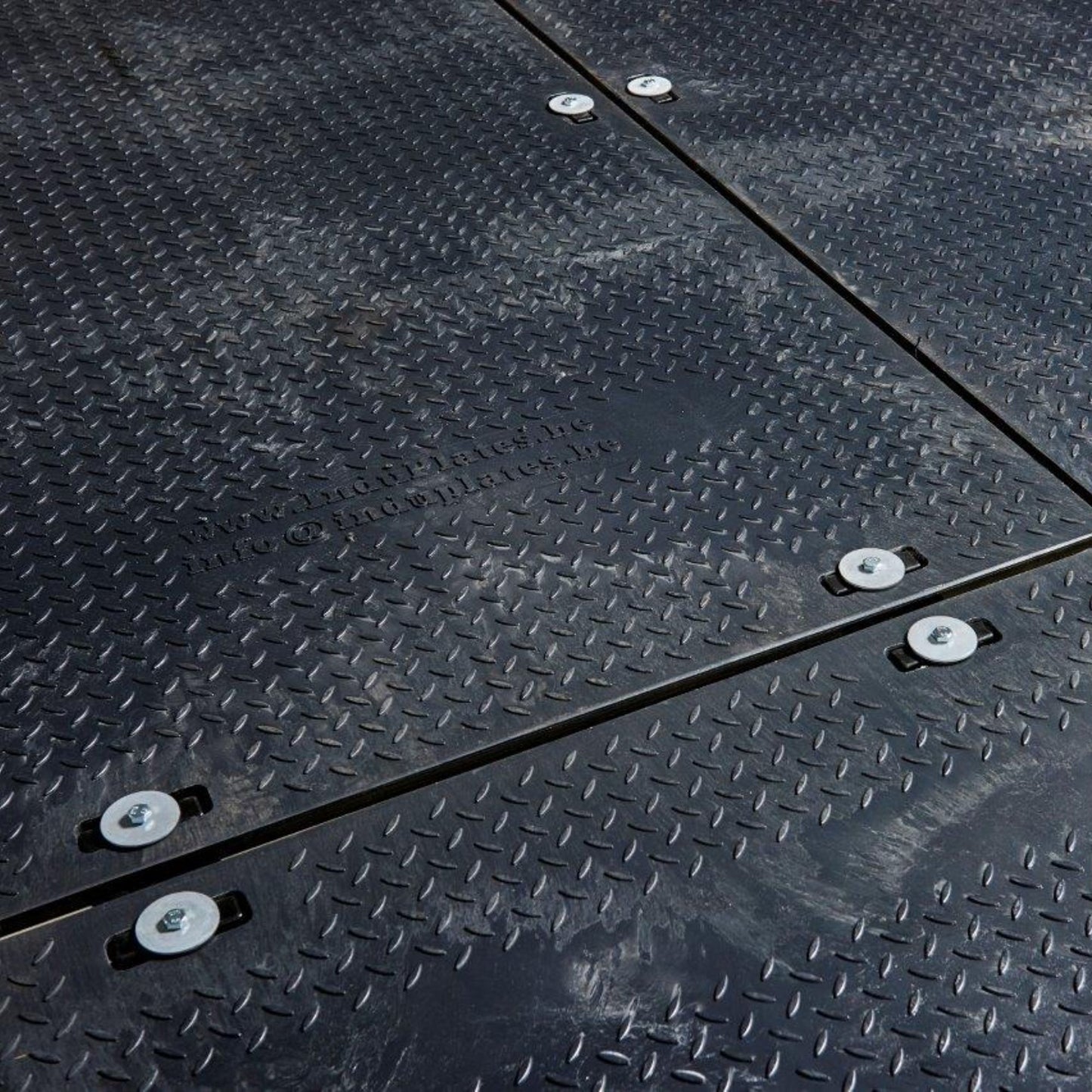

Connecting EuroTrak mats improves overall surface stability and reduces trip hazards, particularly on uneven ground or where mats are exposed to repeated trafficking. It also helps maintain alignment across access routes, working areas and temporary car parks.

Installation is straightforward and does not require specialist equipment. Standard hand tools such as spanners, a wrench or a battery operated drill can be used. Air drills are not recommended, as over-tightening can restrict movement and increase the risk of damage, particularly during temperature changes.

This connector is supplied as standard in recycled HDPE with steel bolts and washers. It is designed specifically for the EuroTrak system and should not be used with other access mat types.

• Designed specifically for EuroTrak Heavy Duty Access Mats
• Bolt and washer fixing for secure connection
• Allows controlled flex to reduce mat damage
• Improves safety by reducing mat movement and lifting
• Suitable for heavy plant and vehicle traffic
• No specialist tools required for installation

The connector body is manufactured from recycled high density polyethylene. Bolts and washers are galvanised steel for strength and corrosion resistance.

Material: Recycled HDPE
Fixings: Steel bolts and washers
Length: 190mm
Width: 115mm
Height: 28mm
Weight: 0.45kg
Colour: Black connector with galvanised fixings
