Elite Standard 4 Way Connector

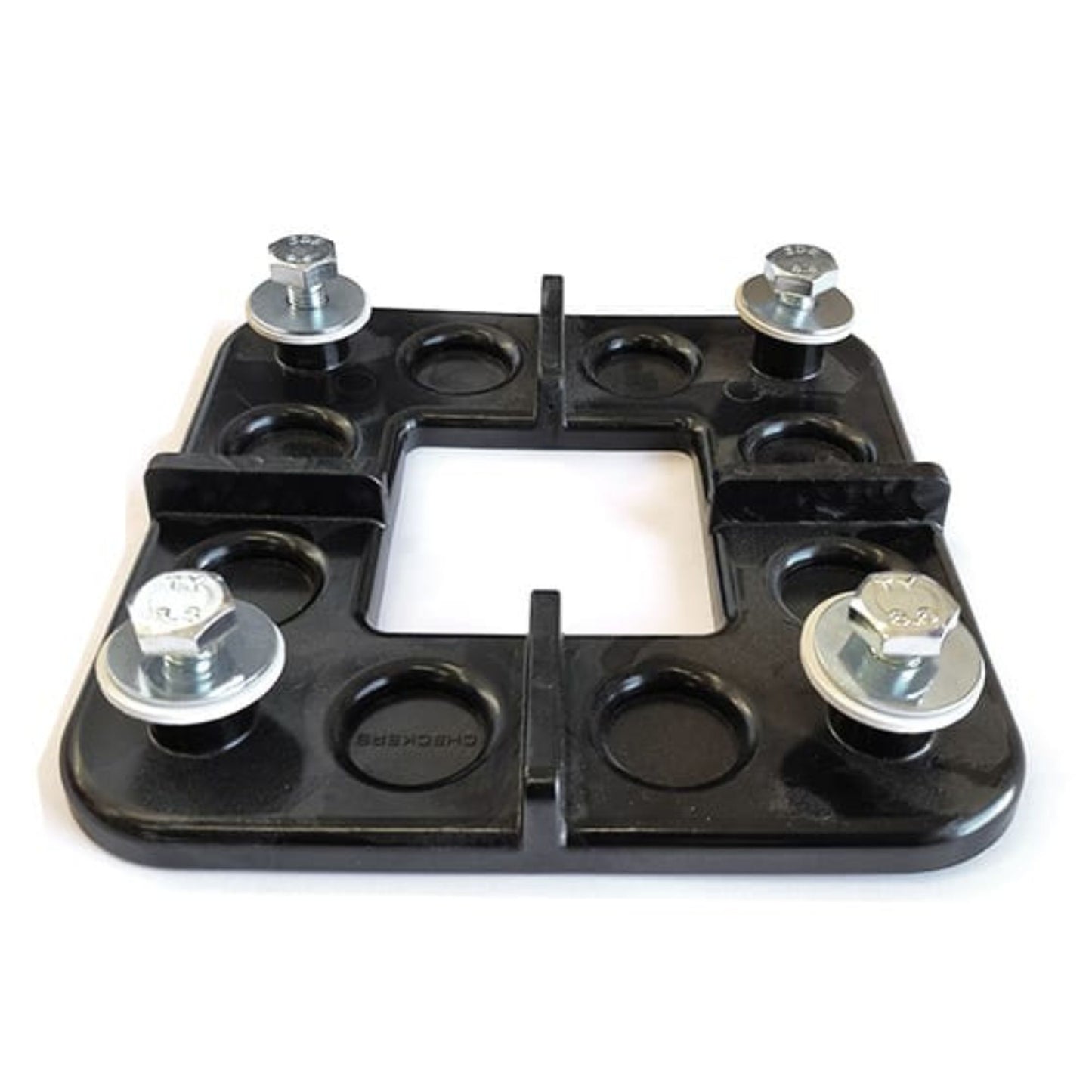

The Elite Standard 4 Way Connector is designed to connect temporary access and ground protection mats where a grid formation is required. It is installed beneath the corner holes of four adjacent mats and secured from the top using standard bolts and washers.

This connector provides a strong mechanical fixing while allowing a small amount of controlled flex. This helps reduce stress on mat edges when subjected to movement from vehicles, plant and machinery, particularly on uneven ground. Fixing mats into a grid also improves surface stability and helps prevent lifting, slipping and trip hazards.

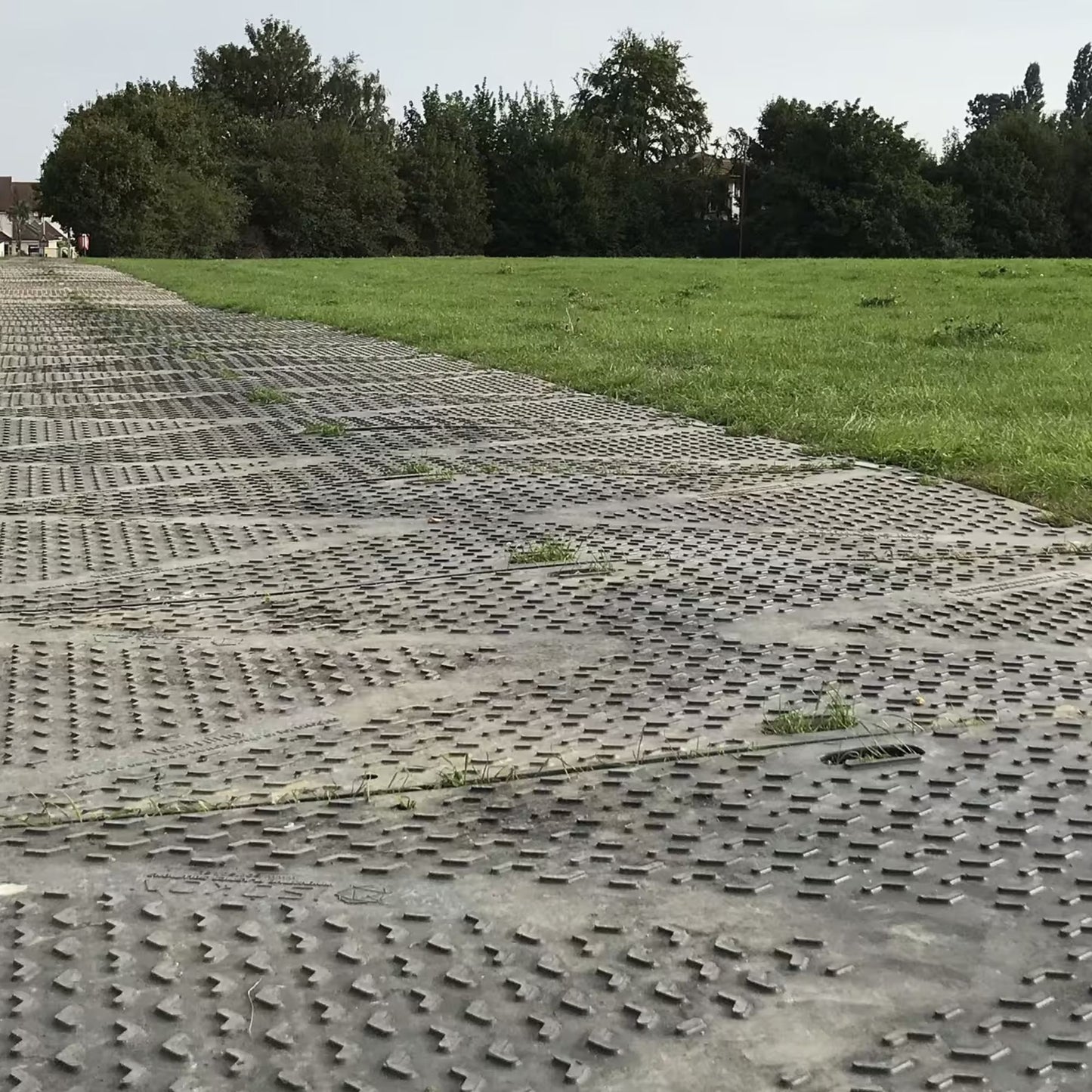

The Standard 4 Way Connector is suitable for medium to long term installations such as access routes, working areas, temporary roadways and car parks. It is commonly used alongside the Standard 2 Way Connector where layouts include both straight runs and full grid fixing.

No specialist equipment is required for installation. Standard spanners, a wrench or a battery operated drill can be used. Air drills are not recommended, as over tightening can restrict movement and increase the risk of mat damage, especially in warm conditions where expansion may occur.

This connector is compatible with a wide range of access mat systems and is commonly used across mixed site environments.

• 4 way connector for grid installation of access mats
• Bolt and washer fixing for secure connection
• Allows limited flex to reduce mat damage
• Suitable for medium to long term installations
• Improves safety by reducing mat movement and lifting
• No specialist tools required for installation

The connector body is manufactured from recycled high density polyethylene. Bolts and washers are steel for strength and durability.

Material: Recycled HDPE
Fixings: Steel bolts and washers
Length: 185mm
Width: 185mm
Height: 10mm
Weight: 0.3kg
Colour: Black connector with galvanised fixings
