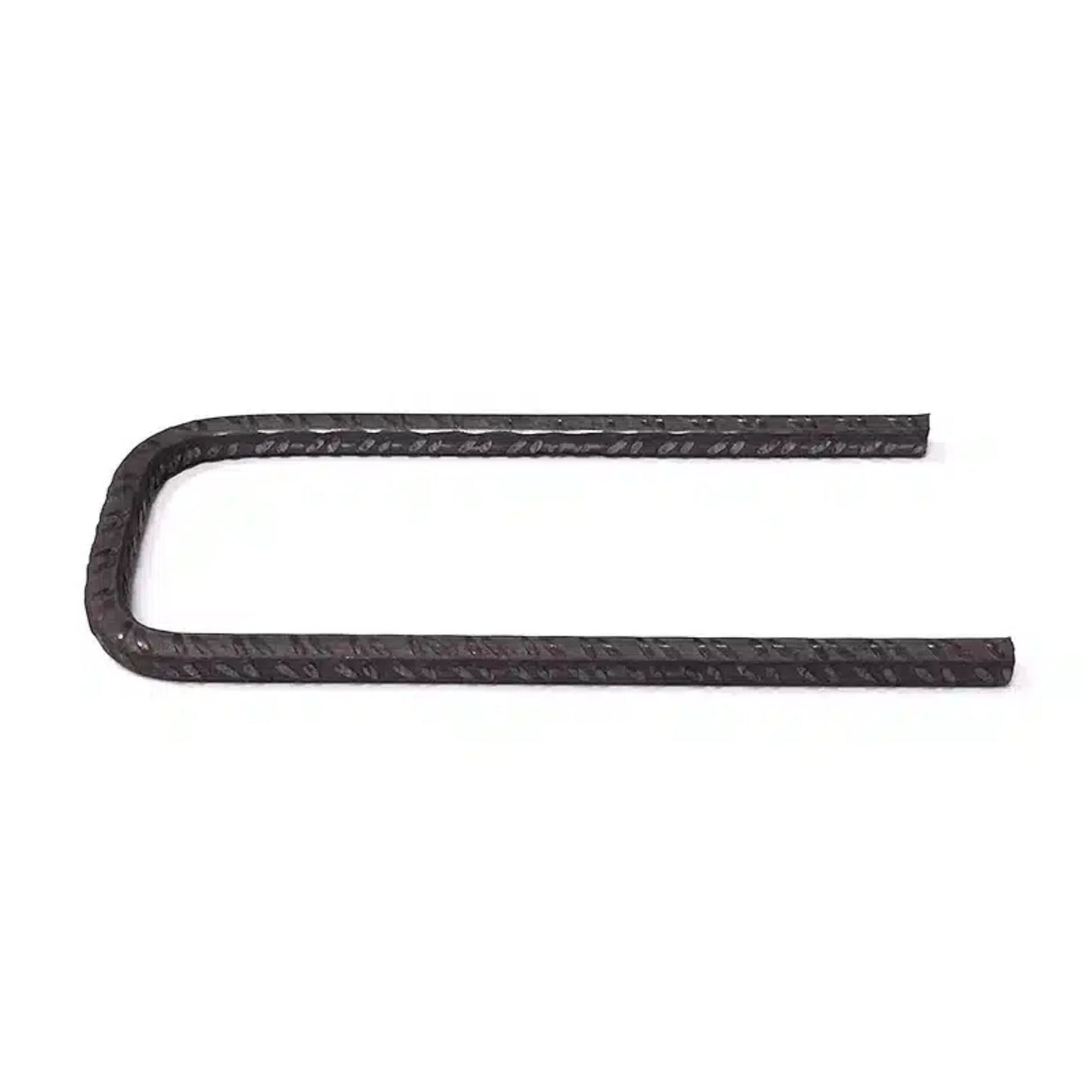

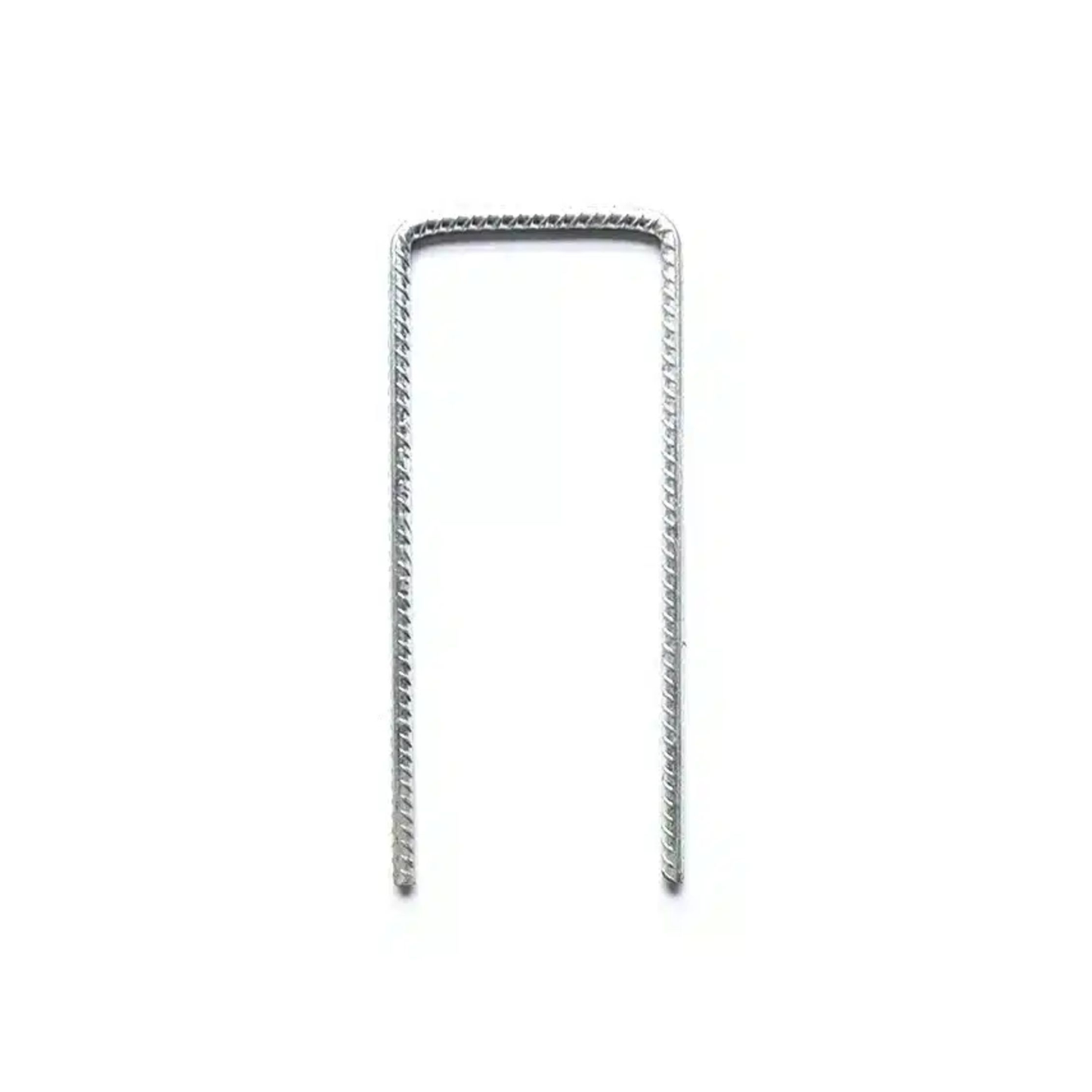

Elite Standard U-Pin Ground Fixing Pin

The Elite Standard U-Pin is a simple and effective ground fixing used to secure temporary access and ground protection mats, ground reinforcement products and fence stabilisers. It is designed to anchor products directly into the ground without the need for additional fixings or accessories.

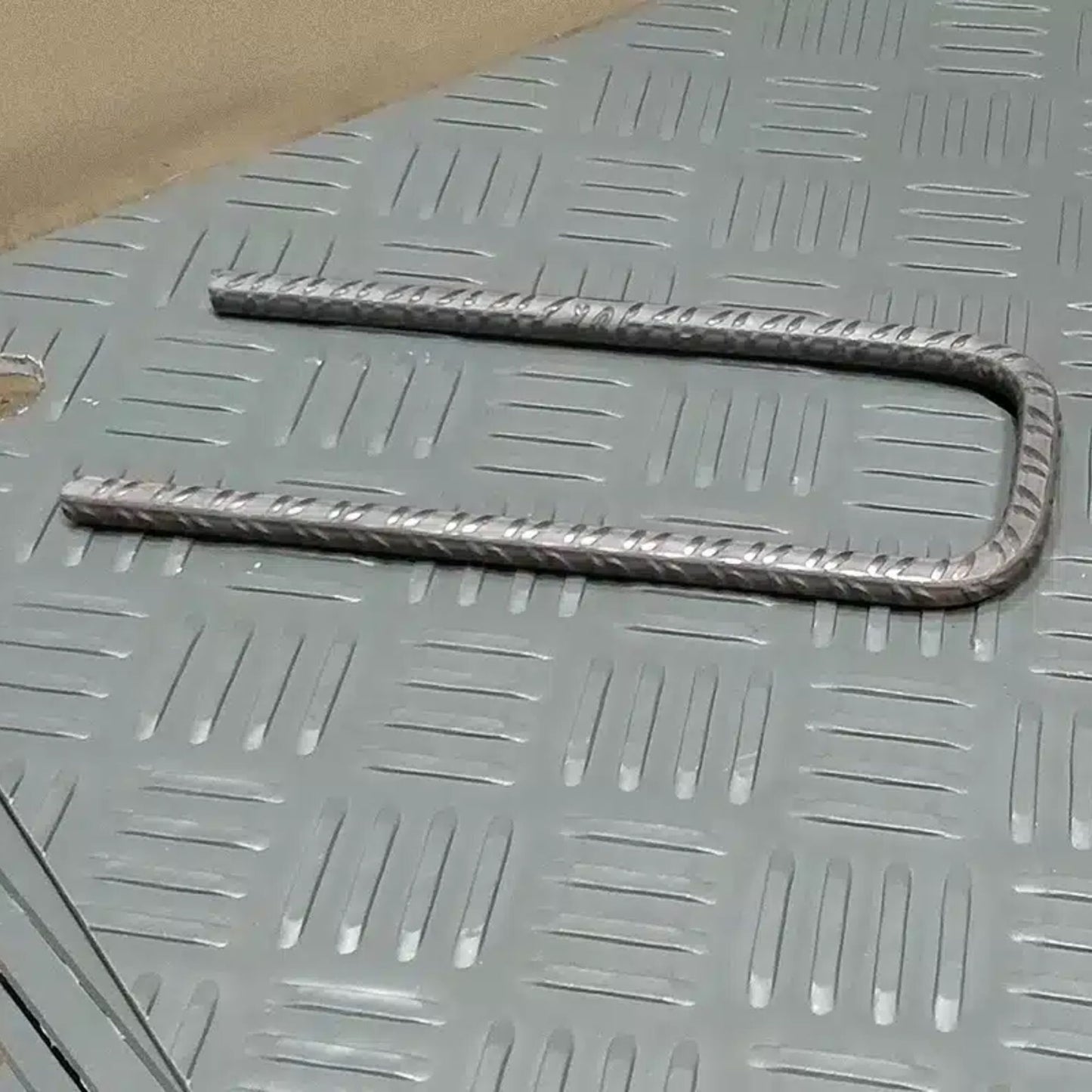

U-Pins are commonly used to secure mats at corners or edges, particularly on soft ground, slopes or areas where movement is more likely to occur. Driving the pin through the mat and into the sub-grade helps prevent lifting, sliding or separation during use.

This fixing method is particularly suited to short term installations where fast installation and removal are required. When used correctly, U-Pins help improve stability and safety when mats are trafficked by pedestrians or light to medium duty plant and machinery.

The Standard U-Pin is manufactured from steel for strength and durability. With correct use and storage, it offers a long service life and good resistance to corrosion.

U-Pins are widely used across construction sites, events, landscaping projects and temporary works where ground anchoring is required.

• Simple ground fixing for access mats and ground products
• Driven directly into soft ground
• Helps prevent mat movement on slopes and uneven surfaces
• Suitable for short term installations
• Strong and durable steel construction
• No additional accessories required

Manufactured from steel to provide strength and durability for repeated site use.

Material: Steel
Sizes available:
Small: 183mm length x 83mm width x 5mm diameter
Large: 260mm length x 150mm width x 10mm diameter
Weight:
Small: 0.1kg
Large: 0.5kg
