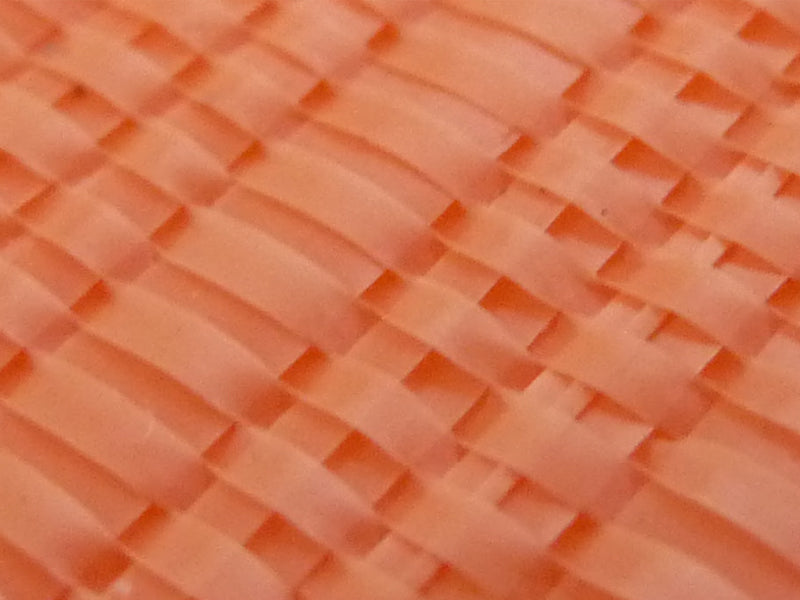

Hi-Vis Orange Woven Geotextile for Contaminated Ground Separation

A High-Visibility Woven Membrane For Separating Contaminated & Clean Soil Layers

This bright orange geotextile acts as both a physical separator and a visual warning marker during groundworks. It’s designed to identify and contain hazardous soils in land reclamation and other civil engineering projects.

Practical Applications & Benefits

Used widely in construction, brownfield development, and industrial remediation, this membrane prevents cross-contamination while helping future contractors spot buried hazards.

Typical Applications

• Land remediation and brownfield redevelopment
• Civil engineering and construction projects
• Infrastructure and utility trenches
• Industrial decontamination sites

• Clearly identifies contaminated ground during future excavation
• Prevents upward migration of polluted soils
• Visibly separates contaminated and uncontaminated mineral layers
• Withstands site stresses thanks to woven polypropylene construction
• Resistant to soil acids, alkalis, bacteria, and fungi
• Predicted durability of 25+ years in standard conditions
• Lightweight and easy to install

woven polypropylene tapes with an integrated UV inhibitor. This provides strength, durability and resistance to degradation when buried in typical ground conditions

• Tensile Strength (MD)EN ISO 10319kN/m10
• Tensile Strength (XD)EN ISO 10319kN/m9
• Elongation at Break (MD)EN ISO 10319%22
• Elongation at Break (XD)EN ISO 10319%15
• CBR Puncture ResistanceEN ISO 12236N1500
• Cone Drop PenetrationEN 13433mm18
• Water Permeability (VIH50)EN ISO 11058m/s0.010
• Water Flow RateEN ISO 11058l/m²/s10
• Pore Size (90% finer than)EN ISO 12956microns220
• UV Resistance UV Inhibitor
• Roll Size—m4.5 x 100
• Material——Woven PP
• Colour——Bright Orange
