K-Mat Heavy Duty Roadway Panels 40mm

K-Mat Heavy Duty Roadway Panels are large format composite road mats designed to create safe, stable temporary roads and working platforms for very high load applications. Manufactured as a single piece from recycled ultra high molecular weight polyethylene, they deliver exceptional strength, durability and load distribution.

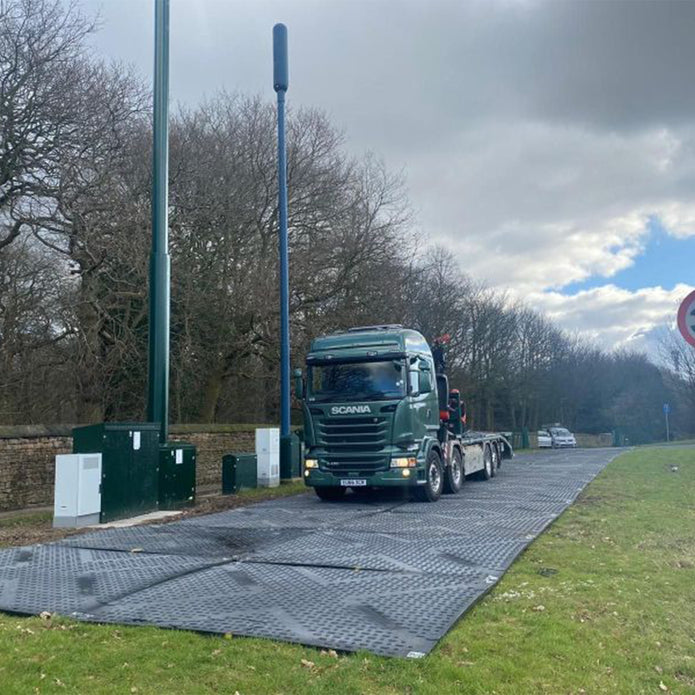

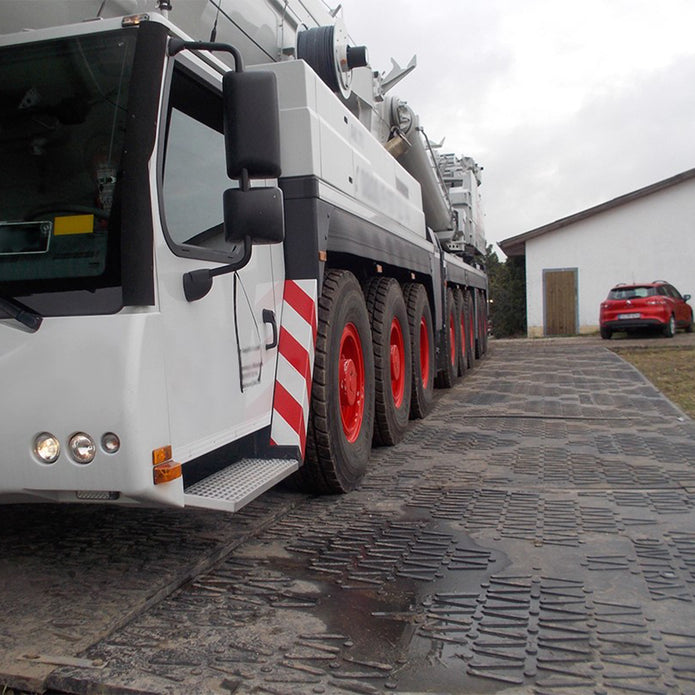

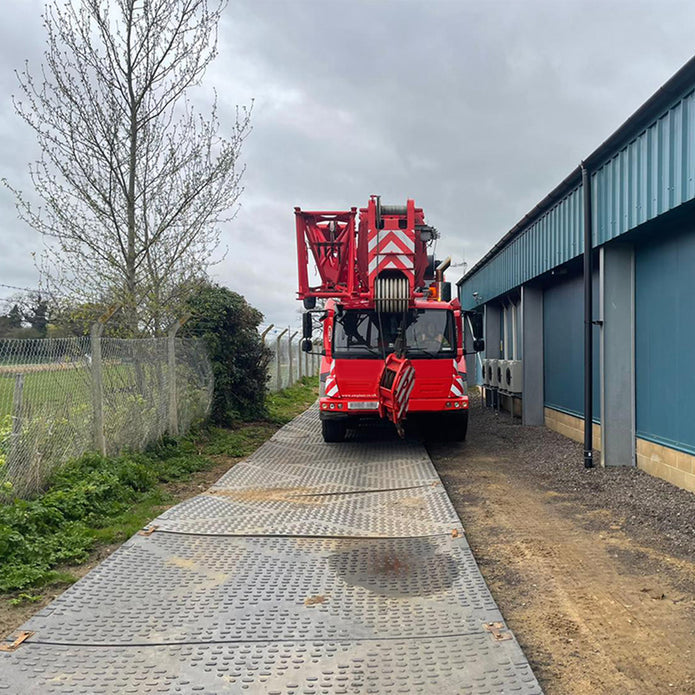

These panels are used where conventional access solutions struggle, including construction and infrastructure projects, utilities maintenance, crane pads, compound access roads, temporary car parks and large scale outdoor events. They are specifically suited to extremely heavy wheeled plant and vehicles operating on soft, weak or sensitive ground.

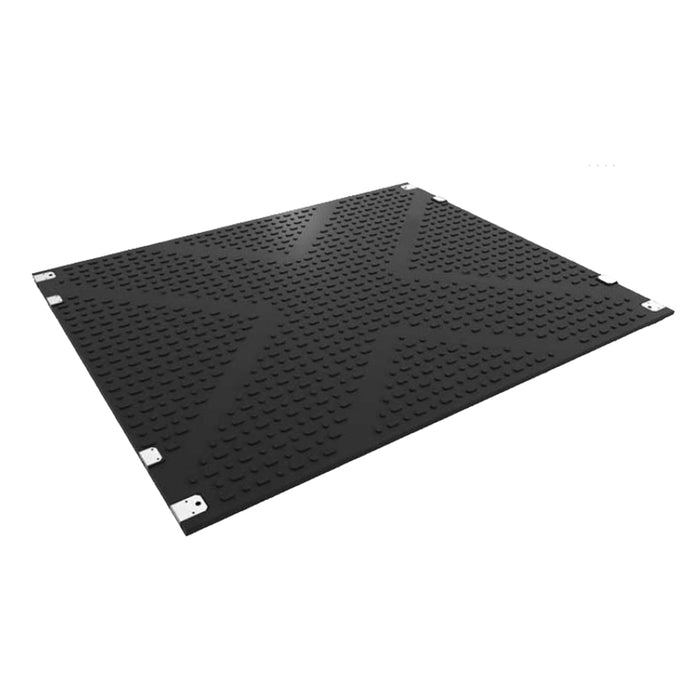

Each panel features a dual grip design. One side incorporates a high profile traction surface intended for vehicle and plant movement, while the reverse side provides a lower profile non slip surface suitable for pedestrian access or working platforms. This makes the panels adaptable to mixed use environments where both machinery and personnel operate.

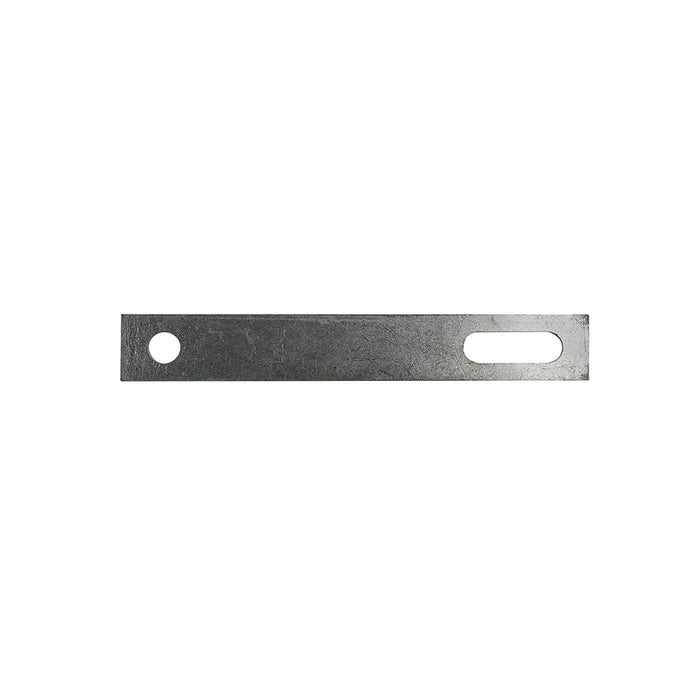

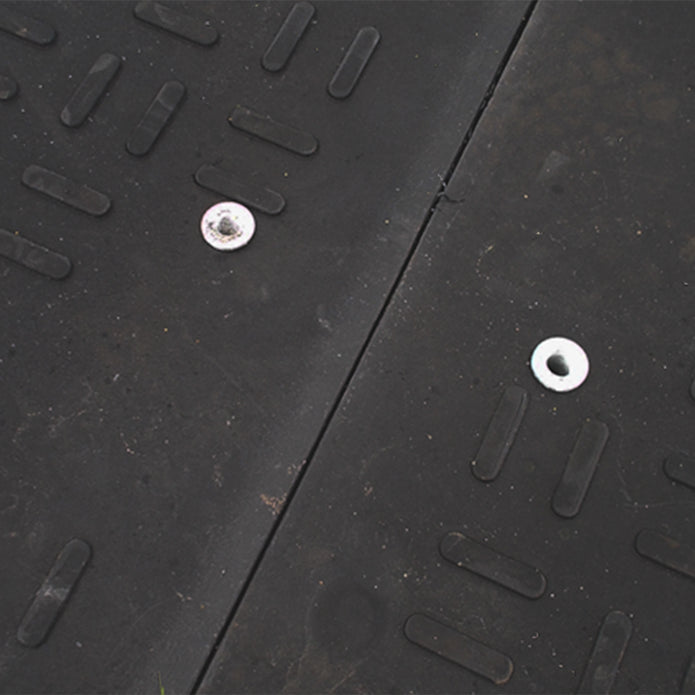

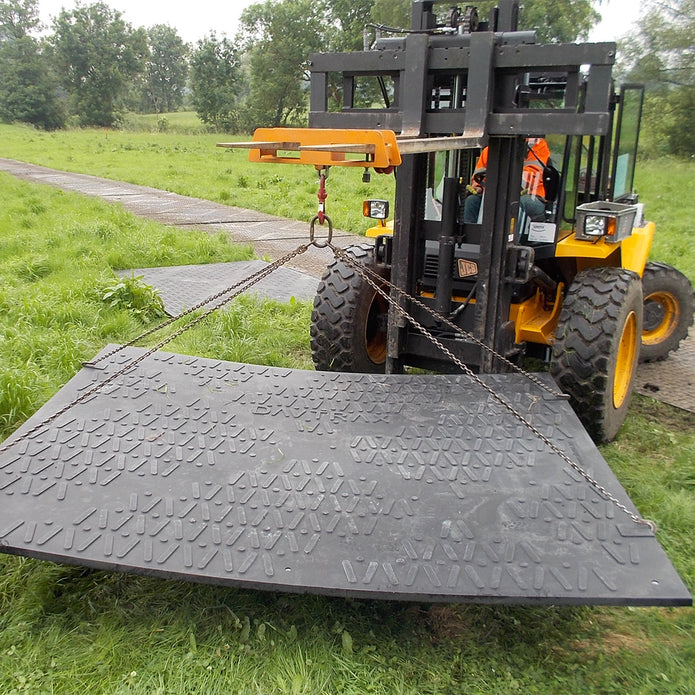

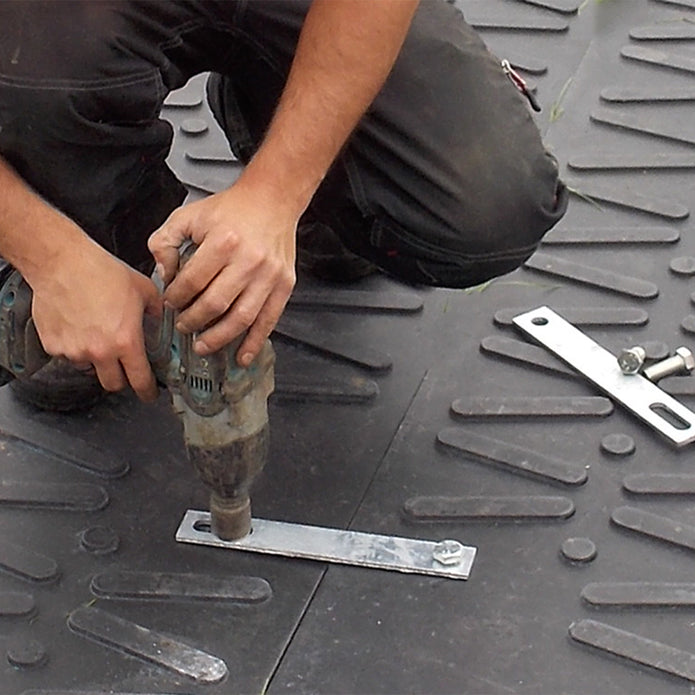

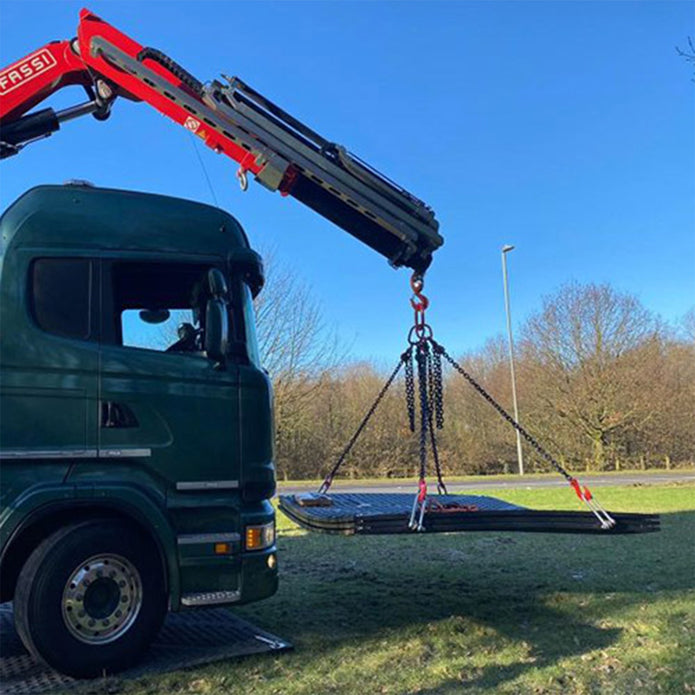

At 40mm thick and weighing 295kg, K-Mat panels are designed for mechanical installation using lifting equipment such as a Hiab or heavy duty forklift. Once installed, panels can be secured together using metal strap connectors to form continuous roadways or large load bearing platforms.

K-Mat panels have a suggested working load of 100 tonnes and are weight tested up to 160 tonnes depending on ground conditions. Sub grade strength, vehicle type and load distribution must always be assessed before use.

Steel tracked vehicles are not suitable unless pre authorised. Aggressive manoeuvring should be avoided and a site speed limit of 5mph must be observed.

• Extremely heavy duty roadway panel for high load access
• Suitable for infrastructure, construction and utilities projects
• Dual grip design for vehicles and pedestrian use
• Solid one piece construction for maximum durability
• Strap connected system for continuous temporary roads
• Reusable, non conductive and long service life

Manufactured from 100 percent recycled ultra high molecular weight polyethylene (UHMWPE). This material provides exceptional impact resistance, load bearing performance and durability in demanding site conditions.

Material: Recycled UHMWPE
Construction: Solid one piece compression moulded panel
Length: 3.0m
Width: 2.5m
Thickness: 40mm
Weight: 295kg
Suggested working load: 100 tonnes
Weight tested: Up to 160 tonnes
Connection holes: 4
Surface: Dual grip, high profile vehicular side and low profile non slip pedestrian side
Colour: Black
Recyclable: Yes
