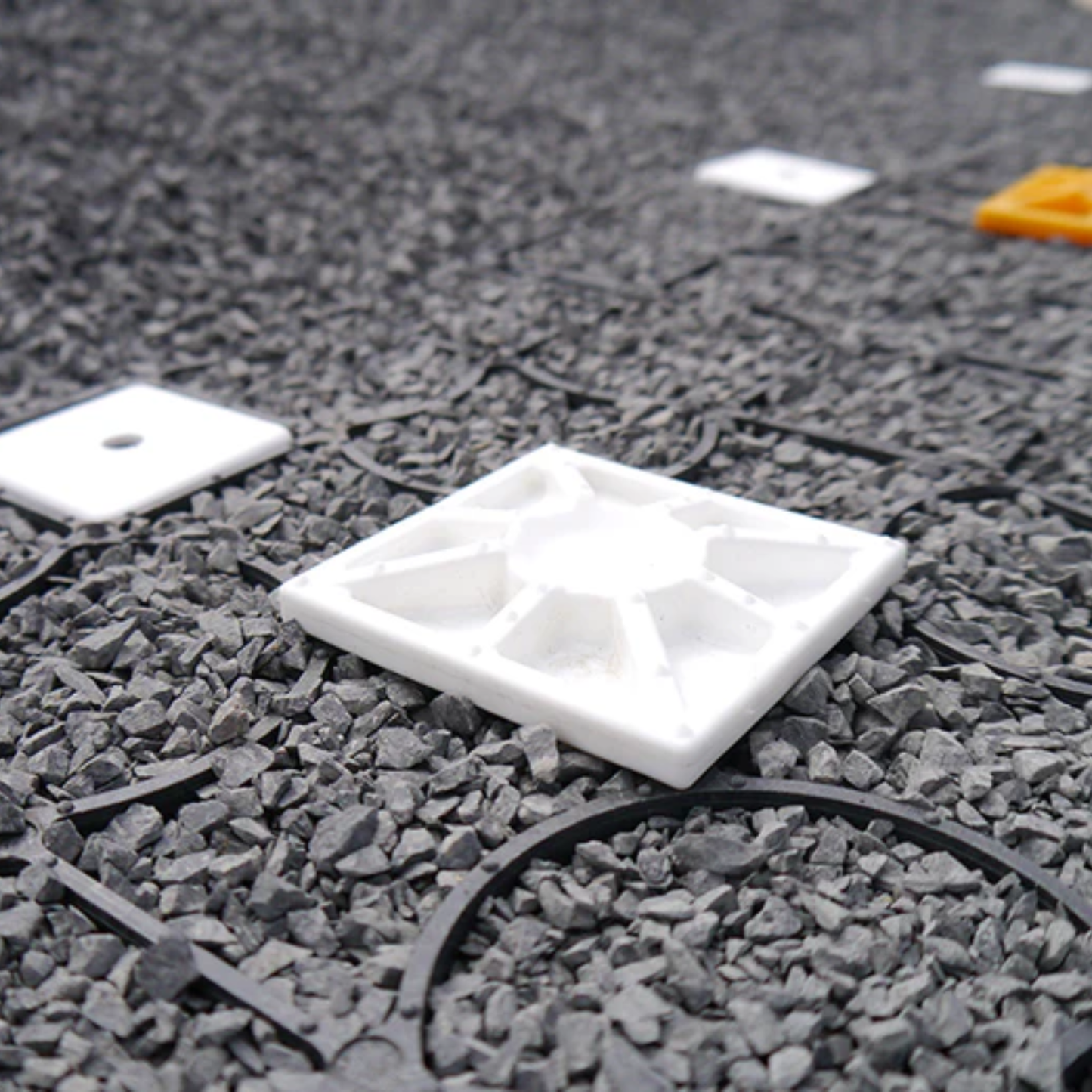

EcoGrid Parking Bay Markers for E40 and E50 Porous Paving

EcoGrid Parking Bay Markers are UV stable plastic inserts designed to clip directly into EcoGrid porous paving systems. They provide a simple, durable method of defining parking bays, disabled spaces, charging points and access routes within permeable paving installations.

The markers push fit into individual grid cells and lock securely beneath the grid structure. Once installed, flat markers sit flush with the surface and are best suited to gravel filled applications where a smooth finish is required. Raised markers are designed for grass filled systems where the surface level finishes above the grid and additional visibility is needed.

These markers are commonly used in public and private car parks, overflow parking, event spaces and commercial developments. They can be installed as a full bay outline or in simple T or corner layouts to reduce the number of markers required while still clearly defining spaces.

A typical installation uses one marker per EcoGrid tile, which equates to approximately three markers per linear metre. For a standard parking bay measuring 2.5 x 5 metres, a common grid layout is 7 grids by 15 grids. Full perimeter marking would require around 22 markers per bay, though this can be reduced depending on layout preference.

EcoGrid Parking Bay Markers are compatible with E40 and E50 grid systems and can be used alongside contrasting aggregates or disabled bay pads to improve visibility. Available in white and yellow as standard.

Limitations. These markers are for bay definition only and are not intended as load bearing or traffic calming features.

Push fit design clips securely into EcoGrid cells

Flat and raised profiles to suit gravel or grass infill

UV stable for long term external use

Suitable for temporary or permanent parking layouts

Compatible with EcoGrid E40 and E50 systems

Allows flexible bay marking layouts and spacing

Manufactured from UV stable plastic designed for external ground reinforcement applications. The material resists degradation from sunlight and weather exposure, maintaining visibility and fit over time.

Profiles available: Flat and Raised
Compatibility: EcoGrid E40 and E50
Flat marker dimensions: 56 x 56 mm
Raised marker dimensions: 80 x 80 mm
Colours: White or Yellow
Installation method: Push fit clip into grid cell
Typical usage rate: Approx. 3 markers per linear metre
